We start by reviewing the method for calculating the length of a straight line segment. a. Find the length of the straight line segment from $(1,2)$ to $(5,4)$, shown in Figure 2. The lengths of the two sides of the right triangle are $4-2=2$ and $5-1=4$. You can use the Pythagorean Theorem to determine the length of the hypotenuse. b. Now generalize this example to find a formula for the length of the segment of the straight line $y=m x+c$ from $x=a$ to $x=b$. This is the line segment connecting the points ( $a$, $\qquad$ ) and (b, $\qquad$ ). Show the necessary work to get the length equal to $(b-a) \sqrt{1+m^2}$. Check your answer to part a using this formula. c. Write an expression for the length of the curve in Figure 3 made up of four straight line segments with slopes $m_1, m_2, m_3$ and $m_4$.

We start by reviewing the method for calculating the length of a straight line segment.
a. Find the length of the straight line segment from $(1,2)$ to $(5,4)$, shown in Figure 2. The lengths of the two sides of the right triangle are $4-2=2$ and $5-1=4$. You can use the Pythagorean Theorem to determine the length of the hypotenuse.

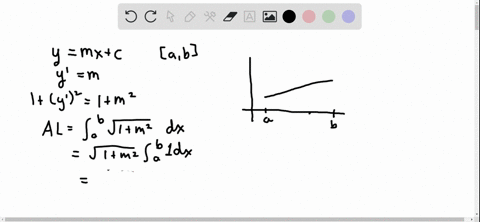

b. Now generalize this example to find a formula for the length of the segment of the straight line $y=m x+c$ from $x=a$ to $x=b$. This is the line segment connecting the points ( $a$, $\qquad$ ) and (b, $\qquad$ ). Show the necessary work to get the length equal to $(b-a) \sqrt{1+m^2}$. Check your answer to part a using this formula.
c. Write an expression for the length of the curve in Figure 3 made up of four straight line segments with slopes $m_1, m_2, m_3$ and $m_4$.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Distance Formula

The distance formula is a key concept used to determine the length between two points in the Cartesian plane. It is derived from the Pythagorean theorem and provides a method to compute the straight-line distance by considering the horizontal and vertical differences between the points.

Pythagorean Theorem

The Pythagorean theorem is fundamental in relating the sides of a right triangle. When a line segment is represented as the hypotenuse of a right triangle with horizontal and vertical legs, this theorem allows us to calculate its length, forming the basis for the distance formula.

Length of a Straight Line Segment

Calculating the length of a straight line segment involves using the differences in the coordinates of its endpoints to determine the lengths of the legs of a right triangle. This calculation can be generalized to any linear function in the form y = mx + c, yielding a formula of the form (b - a)?(1 + m²) when evaluating the segment between two specified x-values.

Piecewise Linear Curves

A piecewise linear curve is composed of multiple straight line segments connected end-to-end. The total length of such a curve is determined by summing the lengths of its individual segments, each of which can be computed using the distance formula or the generalized formula for a straight line segment.
