What are the different points one must keep in mind while...

Key Concepts

Uniform Intervals

Using uniform intervals on the graph’s axes contributes to ease of reading and consistency. Uniform increment steps allow viewers to quickly gauge differences between data points and understand the overall structure of the data without confusion.

Readability and Clarity

The chosen scale should enhance the graph’s readability by avoiding clutter and imbalance. A well-selected scale ensures that data points are neither too compressed nor too stretched, making it easier to derive meaningful insights and comparisons from the graph.

Graph Scale Selection

The overall process of choosing a graph scale involves determining appropriate intervals on each axis so that the graph accurately represents the data. This includes ensuring that the scale covers the full range of data values without excessive unused space, which prevents distortion of the data's trends and relationships.

Data Range Analysis

Before choosing a scale, it is essential to analyze the dataset to identify its minimum and maximum values. This analysis ensures that the scale begins and ends at points that encapsulate all data points, preventing any truncation or misinterpretation of the results.

Axis Labeling and Accuracy

Proper labeling of the axes is critical. This involves clearly marking the increments and ensuring that each label accurately corresponds to the data values, which assists in the precise interpretation of the graph.

Transcript

00:01 About question number 58.

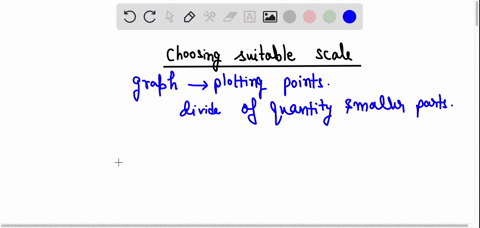

00:03 It's talking about what are the different points one must keep in mind while choosing a suitable scale for drawing a graph.

00:11 So first of whenever we draw a graph, we have two straight lines of perpendicular to each other.

00:17 One is the vertical line and one is the horizontal line and they intersect each other at a point which is called the origin.

00:25 So this would be marked as origin.

00:27 Now if you are choosing the scale, then they, that actually depends on the values which are given to us.

00:33 So let's say, for example, let's talk about two instances.

00:37 The first instance talks about both other distance versus time graphs.

00:42 So let's say the first instance talks about this is the distance and this is the time.

00:49 So the first instance talks about 100, 200, 300, and the time is 2, 4, 6 and 8.

00:58 So this is in meters and this is in second.

01:02 So if you want to plot this kind of graph, so we know that the units are 100, 200, 300, 400, so it's better to either mark as 50, 150, 100, and so on, or we can either mark it as one unit is equal to 100 meters.

01:18 So 100, 200, 300, 400, and so on.

01:22 And on the x -axis, we are going to mark one unit as one second, so one unit as two seconds.

01:27 It's going to be 2, 4, 6, and 8.

01:30 So 2, 4, 6, and 8 is going to be over here.

01:35 On the contrary, if we have a scaling, something like if we have the values, let's say, something like 20, 30, 60, 70, something like this.

01:52 And we have 1, 3, 7, and let's say 9.

01:57 So in this case, it won't be a good idea...
