What is a Carnot cycle? Illustrate on a pV diagram and an ST diagram. Derive the efficiency of a

step 1 Hello everyone, this is Problem 91 from Chapter 18. It gives us in a figure a Carnot cycle, and

What is a Carnot cycle? Illustrate on a pV diagram and an ST...

Key Concepts

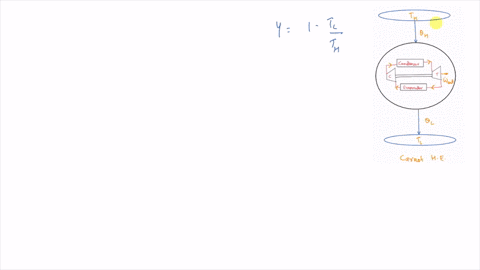

Carnot Efficiency

Carnot efficiency is the theoretical maximum efficiency that a heat engine can achieve operating between two given temperatures. It is derived from the Carnot cycle and is expressed as ? = 1 - (T_cold/T_hot), where T_cold and T_hot are the absolute temperatures of the cold and hot reservoirs, respectively. This efficiency limit highlights that no engine operating between these two temperatures can be more efficient than a reversible engine following the Carnot cycle, emphasizing the fundamental limitations imposed by the second law of thermodynamics.

ST Diagram

The ST diagram is a plot of entropy (S) versus temperature (T) and offers insight into the heat interactions during the thermodynamic processes. For the Carnot cycle, the isothermal processes appear as horizontal lines (constant temperature and a change in entropy due to heat transfer), while the adiabatic processes are vertical lines (constant entropy, with no heat exchanged). This diagram is particularly useful for understanding the thermodynamic efficiency and the reversibility of the cycle.

Reversible Processes

Reversible processes are idealized changes where the system and its surroundings can be returned to their original states with no net entropy change. In the context of the Carnot cycle, all processes are assumed to be reversible, which allows the cycle to achieve maximum efficiency. This concept is crucial because it underscores the theoretical limit of engine performance without the losses typically associated with friction and other irreversibilities in real-world systems.

Carnot Cycle

The Carnot cycle is an idealized thermodynamic cycle that provides the maximum possible efficiency for a heat engine operating between two temperature reservoirs. It is comprised of four reversible processes: two isothermal processes where heat is absorbed and rejected at constant temperature, and two adiabatic processes where no heat is exchanged. This cycle serves as a benchmark for the performance of real engines, as no actual cycle can be more efficient than the Carnot cycle operating between the same temperature limits.

pV Diagram

The pV diagram is a graphical representation of a thermodynamic process plotting pressure (p) against volume (V). In the Carnot cycle, the diagram illustrates the four distinct processes: isothermal expansions and compressions, and adiabatic expansions and compressions. The shape of these curves helps in visualizing how work is performed by and on the system during the cycle, with the area enclosed by the cycle representing the net work output.

Transcript

00:01 Hello everyone, this is problem 91 from chapter 18.

00:05 It gives us in a figure a carnot cycle, and it tells us there are four processes in a carno cycle.

00:11 So there's an isotherm, an adabat, another isotherm, and another adabat.

00:20 So let me call these different points, a, b, c, and d.

00:28 So i've tried to draw it here.

00:30 It's kind of rough.

00:31 C to d is supposed to be an isotherm, b, or a, or a, or a, to b to b to c is an a -dobat and d to a is an a -dabat.

00:40 And so it asks us to prove that the efficiency is 1 minus t -c over t -h, which is what we expect.

00:47 So beginning with what we know the definition of efficiency is, we can write this as w over qh or 1 minus qc over qh.

01:04 So really we just need the heat, the heat exhausted of the cold reservoir divided by the heat, taking in at the hot reservoir.

01:17 We know that the heat taking it at the hot reservoir is just going to be in a to b, and the heat exhausted at the cold reservoir is just going to be the heat exhausted along c to d.

01:28 This is because these other two processes, process 2 and process 4, are 80 bats, and so the heat exchange is 0.

01:37 So using the fact that processes 1 and 3 are isotherms, we see that the efficiency is 1 minus nr, nr t subc log of vc over vd, and then over nrth, log of vb over va.

02:18 Okay, and we'll notice that immediately the nrs cancel out.

02:25 And so now we need some way to relate vc and vd and vb and va...
