What is the equivalent resistance between points a and b in Figure P23.19?

Name: Problem 19, Chapter 23: College Physics: A Strategic Approach
Uploaded: 2020-10-30T14:13:53-08:00
Duration: 3 min 41 s
Channel: Vishal Gupta
Description: What is the equivalent resistance between points a and b in Figure P23.19?

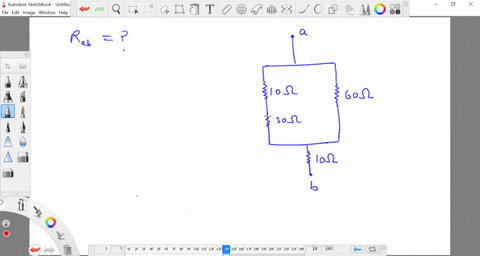

step 1 Hi, in the given problem there is a circuit diagram between the terminals A and B. The diagram i

What is the equivalent resistance between points a and b in...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Equivalent Resistance

This concept refers to the single resistance that can replace an entire network of resistors while preserving the same current–voltage characteristics between two points in a circuit. It is fundamental for reducing complex circuits into simpler forms to analyze overall behavior, especially in determining how current flows and how voltage divides across components.

Series and Parallel Combinations

Resistors in a network are often arranged in series or parallel configurations. When resistors are in series, their resistances add directly, while for resistors in parallel, the reciprocal of the total resistance is the sum of the reciprocals of individual resistances. Knowing these basic rules is essential for combining resistors step by step to simplify circuits and calculate the equivalent resistance.

Circuit Simplification Techniques

Beyond simple series and parallel combinations, many circuits require advanced techniques like transformation methods (such as delta-to-wye conversions) or application of Kirchhoff's laws to simplify networks that cannot be reduced by inspection alone. These methods help in systematically breaking down complex resistor networks into simpler parts, which is crucial for effective circuit analysis.
