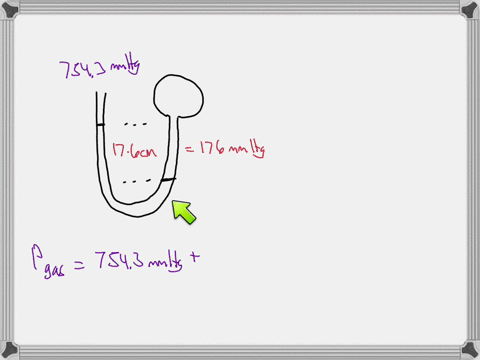

What is the pressure in millimeters of mercury inside a container of gas connected to a mercury-filled open-end manometer of the sort shown in Figure 9.4 when the level in the arm connected to the container is 17.6 $\mathrm{cm}$ lower than the level in the arm open to the atmosphere and the atmospheric pressure reading outside the apparatus is 754.3 $\mathrm{mm}$ Hg?

What is the pressure in millimeters of mercury inside a container of gas connected to a mercury-filled open-end manometer of the sort shown in Figure 9.4 when the level in the arm connected to the container is 17.6 $\mathrm{cm}$ lower than the level in the arm open to the atmosphere and the
atmospheric pressure reading outside the apparatus is 754.3 $\mathrm{mm}$ Hg?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Manometer Operation

A manometer is an instrument used to measure pressure by balancing the weight of a fluid column against the pressure to be measured. In this context, the height difference in the mercury levels in the arms of the manometer indicates the pressure difference between the gas in the container and the atmospheric pressure.

Hydrostatic Pressure

Hydrostatic pressure is the pressure exerted by a fluid at rest due to the force of gravity. It is calculated using the product of the fluid density, the gravitational acceleration, and the height difference of the fluid column. This concept is essential in understanding how the height difference in a mercury manometer translates into a pressure difference.

Atmospheric vs. Gauge Pressure

Pressure measurements can be expressed as absolute pressure (relative to a vacuum) or gauge pressure (relative to atmospheric pressure). In this scenario, the manometer reading is used along with the known atmospheric pressure to determine the absolute pressure inside the container.

Unit Conversion

Accurate pressure calculations require consistent units. Since the problem provides measurements in centimeters and millimeters of mercury, converting these units appropriately is key to ensuring that the final pressure value is correctly computed in the desired unit.
