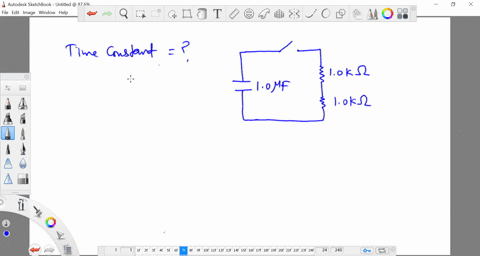

What is the time constant for the discharge of the...

Key Concepts

RC Time Constant

The RC time constant, typically represented by the symbol ? (tau), is a fundamental concept in circuits involving resistors and capacitors. It is calculated as the product of the resistance (R) and the capacitance (C), ? = RC, and it essentially characterizes the rate at which a capacitor charges or discharges. After one time constant, a discharging capacitor’s voltage drops to about 36.8% of its initial value, providing a measure of how quickly the capacitor reaches a near-steady state.

Capacitor Discharge

Capacitor discharge is the process by which a capacitor releases its stored electrical energy through a resistor or a network of resistors once the supply is disconnected. This process follows an exponential decay curve governed by the RC time constant, where the voltage across the capacitor decreases exponentially over time, allowing engineers to predict the voltage level at any given time during the discharge.

Equivalent Circuit Analysis

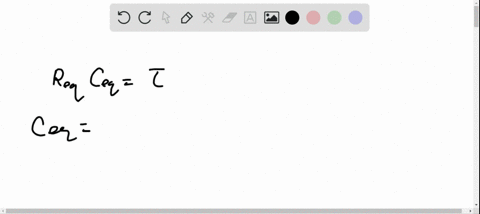

In circuits that feature multiple capacitors or resistors, determining the overall (or effective) time constant requires analyzing the equivalent resistance seen by the capacitor(s) during discharge. This analysis often involves combining resistors in series or parallel configurations, as well as considering the proper arrangement of capacitors, to derive an equivalent RC product that governs the behavior of the entire network.
