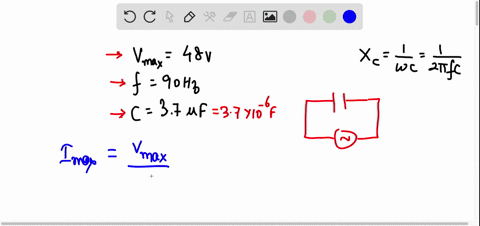

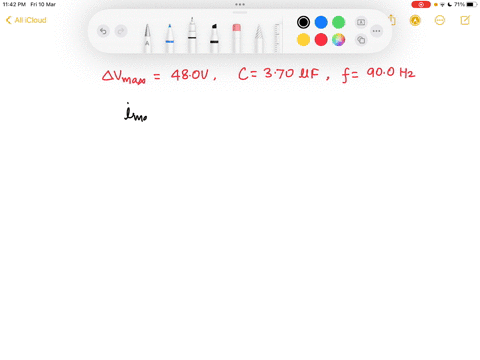

What maximum current is delivered by an AC source with ΔVmax=48.0 V and f=90.0 Hz when connected

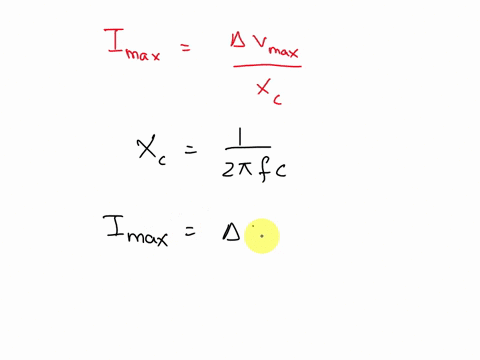

step 1 We can find iMex, IMAX, the maximum current, we can find it by writing equation that is Vmax div

What maximum current is delivered by an AC source with...

Key Concepts

Angular Frequency

Angular frequency, denoted by ?, is the rate of change of the phase of a sinusoidal waveform and is defined as ? = 2?f, where f is the frequency in hertz. It is a key parameter in AC circuit analysis because it links the frequency of the source to the reactive properties of components like capacitors and inductors.

Capacitive Reactance

Capacitive reactance is the opposition a capacitor offers to AC and is given by X_C = 1/(?C), where ? is the angular frequency and C is the capacitance. It represents how the capacitor resists the changes in voltage across its plates, and it directly affects the magnitude of the current through the capacitor when a sinusoidal voltage is applied.

Alternating Current (AC) Source

An AC source provides a voltage that varies sinusoidally with time. Unlike direct current (DC), where the current flows in one constant direction, AC periodically reverses its direction. This periodic nature is typically characterized by the amplitude (maximum voltage) and frequency (the number of cycles per second), which are crucial parameters in analyzing AC circuits.

Capacitor in AC Circuits

A capacitor is a passive electrical component that stores energy in the form of an electric field. When placed in an AC circuit, a capacitor does not simply resist the flow of charge as a resistor does but instead introduces a phase difference between voltage and current. This behavior is due to the capacitor's need to charge and discharge continuously in response to the alternating voltage.
