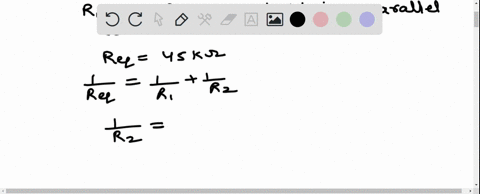

What resistance should you place in parallel with a 56-k...

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Parallel Resistor Networks

This concept involves combining resistors that are connected in such a way that the same voltage is applied across each resistor. In analyzing parallel resistor networks, the reciprocal formula, 1/Req = 1/R1 + 1/R2 + …, is used to determine the equivalent resistance, which is always lower than the smallest individual resistor in the network.

Equivalent Resistance

Equivalent resistance is the single resistance value that can replace a network of resistors without changing the overall voltage and current characteristics of the circuit. It simplifies circuit analysis by allowing complex resistor networks to be reduced to a single resistor value.

Algebraic Manipulation in Circuit Analysis

This involves rearranging the equations that arise from the relationships in electrical circuits to solve for unknown quantities. By applying algebraic techniques to the reciprocal formula for parallel resistors, one can isolate and calculate unknown resistor values needed to achieve a desired equivalent resistance.
