What type of pump is shown in Fig. P11.5? How does it operate?
Step 1
First, we need to identify the pump shown in Fig. P11.5. Unfortunately, since the figure is not provided in the question, we cannot determine the exact type of pump. Show more…
Show all steps
Your feedback will help us improve your experience
Victor Salazar and 82 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The centrifugal pump shown in Fig. $\mathrm{P} 12.24$ is not self- priming. That is, if the water is drained from the pump and pipe as shown in Fig. $\mathrm{P} 12.24(a),$ the pump will not draw the water into the pump and start pumping when the pump is turned on. However, if the pump is primed [i.e., filled with water as in Fig. $\mathrm{P} 12.24(b)],$ the pump does start pumping water when turned on. Explain this behavior.
The performance characteristics of a certain centrifugal pump are deternined from an experimental setup similar to that shown in Fig. $12.10 .$ When the flowrate of a liquid $(S G=0.9)$ through the pump is $120 \mathrm{gpm}$, the pressure gage at ( 1 ) indicates a vacuum of $95 \mathrm{mm}$ of mercury and the pressure gage at (2) indicates a pressure of $80 \mathrm{kPa}$. The diameter of the pipe at the inlet is $110 \mathrm{mm}$ and at the exit it is $55 \mathrm{mm}$. If $z_{2}-z_{1}=0.5 \mathrm{m},$ what is the actual head rise across the pump? Explain how you woud estimate the pump motor power requirement.

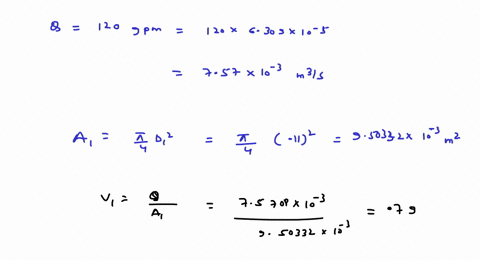

The performance characteristics of a certain centrifugal pump are determined from an experimental setup similar to that shown in Fig. $12.10 .$ When the flowrate of a liquid $(S G=0.9)$ through the pump is $120 \mathrm{gpm},$ the pressure gage at (1) indicates a vacuum of $95 \mathrm{mm}$ of mercury and the pressure gage at (2) indicates a pressure of 80 kPa. The diameter of the pipe at the inlet is $110 \mathrm{mm}$ and at the exit it is $55 \mathrm{mm} .$ If $z_{2}-z_{1}=0.5 \mathrm{m},$ what is the actual head rise across the pump? Explain how you would estimate the pump motor power requirement.
