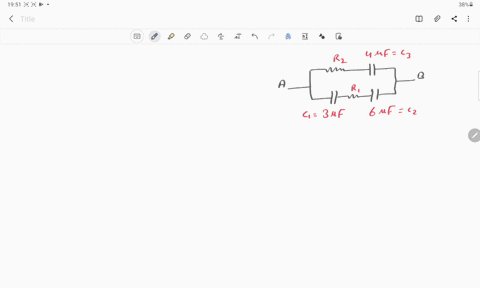

What's the equivalent capacitance measured between A and B...

Key Concepts

Equivalent Capacitance

This is the net capacitance obtained when multiple capacitors are combined in a circuit. It represents the single capacitor that would store the same amount of electrical energy as the original network when connected across the same voltage. Calculating equivalent capacitance allows for the simplification of complex circuits, making analysis and design more manageable.

Series Connection of Capacitors

When capacitors are connected in a series arrangement, the same charge accumulates on each capacitor but the total voltage is the sum of the individual voltages. The calculation of equivalent capacitance for series-connected capacitors is done using the reciprocal formula, where the reciprocal of the equivalent capacitance is the sum of the reciprocals of the individual capacitances. This results in an equivalent capacitance that is smaller than any individual capacitor in the series.

Parallel Connection of Capacitors

In a parallel configuration, capacitors are connected so that the same voltage is applied across each capacitor, and the total stored charge is the sum of the charges on each capacitor. The equivalent capacitance for parallel-connected capacitors is found by directly summing their individual capacitances, resulting in a total capacitance that is greater than any of the individual values. This principle simplifies analysis when capacitors are combined in parallel.

Circuit Simplification Techniques

This involves breaking down a complex circuit into simpler series or parallel sections to make calculations easier. By identifying and combining capacitors in series and parallel configurations, the overall circuit can be reduced to a single equivalent capacitance, which greatly aids in understanding the behavior of the circuit and solving related problems.
