Wheel on a Frictionless Axis A wheel of radius 0.20 m is mounted on a frictionless horizontal a

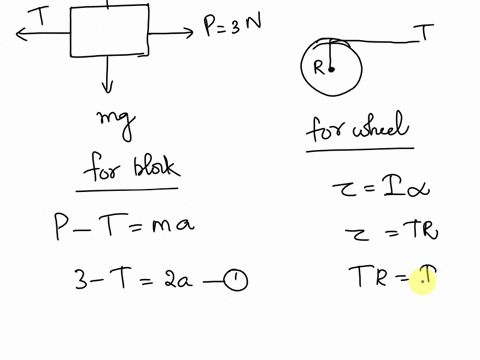

step 1 This problem covers the concept of the Newton second law of rotational motion. And to solve this

Wheel on a Frictionless Axis A wheel of radius 0.20 m is...

Wheel on a Frictionless Axis A wheel of radius $0.20 \mathrm{~m}$ is mounted on a frictionless horizontal axis. The rotational inertia of the wheel about the axis is $0.050 \mathrm{~kg} \cdot \mathrm{m}^{2} .$ A massless cord wrapped around the wheel is attached to a $2.0 \mathrm{~kg}$ block that slides on a horizontal frictionless surface. If a horizontal force of magnitude $P=$ $3.0 \mathrm{~N}$ is applied to the block as shown in Fig. $11-35$, what is the magnitude of the rotational acceleration of the wheel? Assume that the string does not slip on the wheel.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Moment of Inertia

This is a property of a rigid body that quantifies its resistance to rotational acceleration about a given axis. It depends not only on the mass of the object but also on how that mass is distributed relative to the axis of rotation.

Torque

Torque is the rotational equivalent of linear force. It measures how effectively a force applied at some distance from the axis of rotation can produce angular acceleration. Mathematically, it is the product of force and lever arm length.

Angular Acceleration

Angular acceleration is the rate at which the rotational velocity of an object changes with time. It is a key parameter in rotational dynamics, analogous to linear acceleration in translational motion.

Non-Slip Condition and the Relation between Linear and Angular Motion

When a cord or surface does not slip on a rotating object, there is a fixed relationship between the linear acceleration of the point of contact and the angular acceleration of the object. This constraint is essential in analyzing systems where rotational motion is directly connected to translational motion.
