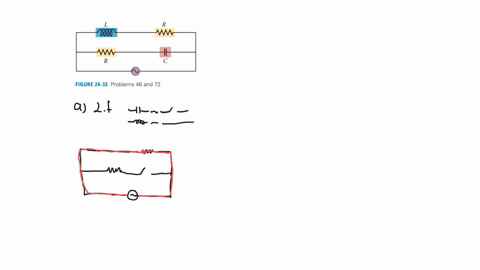

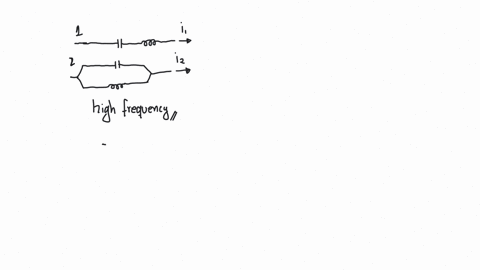

When a particular inductor and capacitor are connected across the same AC voltage, the current i

step 1 Well, we know that capacitive reactants xC is equal to 1 divided by omega -C, and inductive reac

When a particular inductor and capacitor are connected...

Key Concepts

Inductive Reactance

Inductive reactance (X? = ?L) represents the opposition offered by an inductor to AC current and increases linearly with frequency. This means as the frequency of the applied AC voltage increases, the inductor's impedance increases, reducing the current through the inductor for a given voltage.

Capacitive Reactance

Capacitive reactance (X? = 1/(?C)) characterizes the opposition a capacitor presents to AC current and decreases as frequency increases. At higher frequencies, the capacitor offers lower impedance and allows more current to flow, while at lower frequencies it restricts current flow.

Frequency Dependency

The relative magnitudes of inductive and capacitive reactances are frequency dependent. The statement regarding the current in an inductor being higher than in a capacitor is not universally true, as the currents depend on how each reactance varies with frequency. Their behaviors cross over at specific frequencies, proving that the relationship is not constant across all frequencies.

AC Circuit Impedance

Impedance in AC circuits combines both resistance and reactance to characterize the total opposition to current flow. The interplay of inductive and capacitive reactances in the circuit dictates how the current distributes through each component when subjected to the same AC voltage, emphasizing the importance of considering impedance when analyzing AC circuits.
