When Kirchhoff's Laws are applied to the electrical network...

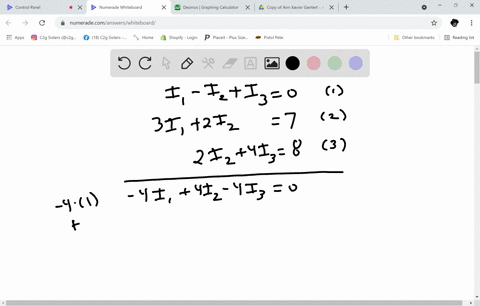

When Kirchhoff's Laws are applied to the electrical network in the figure, the currents $I_{1}, I_{2},$ and $I_{3}$ (in amperes) are the solution of the system figure, the currents $I_{1}, I_{2},$ and $I_{3}$ (in amperes) are the solution of the system $$\left\{\begin{aligned} I_{1}-I_{2}+I_{3} &=0 \\ 3 I_{1}+2 I_{2} &=7 \\ 2 I_{2}+4 I_{3} &=8 \end{aligned}\right.$$ Find the currents.

When Kirchhoff's Laws are applied to the electrical network in the figure, the currents $I_{1}, I_{2},$ and $I_{3}$ (in amperes) are the solution of the system figure, the currents $I_{1}, I_{2},$ and $I_{3}$ (in amperes) are the solution of the system $$\left\{\begin{aligned}
I_{1}-I_{2}+I_{3} &=0 \\
3 I_{1}+2 I_{2} &=7 \\
2 I_{2}+4 I_{3} &=8
\end{aligned}\right.$$ Find the currents.

Key Concepts

Techniques for Solving Linear Systems

Techniques for solving systems of linear equations include methods such as substitution, elimination, and matrix-based approaches like Gaussian elimination or using an inverse matrix. These methods are critical in determining unique solutions when the equations represent physical laws, as is the case with the analysis of circuits based on Kirchhoff's Laws.

System of Linear Equations

A system of linear equations is a set of equations in which each equation is linear in the unknowns, and the same set of unknowns appears across the different equations. In the context of circuit analysis, these systems arise when applying Kirchhoff's Laws, where each equation corresponds to a current or voltage conservation rule in the circuit. Solving these systems yields the values of currents or voltages throughout the circuit.

Kirchhoff's Laws

Kirchhoff's Laws are essential principles in circuit analysis that include the Current Law (KCL) and the Voltage Law (KVL). These laws provide the foundation for writing equations that describe the conservation of charge and energy within an electrical circuit. KCL asserts that the total current entering a node (junction) must equal the total current leaving the node, and KVL states that the sum of voltage drops around any closed loop in a circuit equals the sum of the voltage rises, ensuring energy conservation.
