When the temperature is at 30^∘ C, the A-36 steel pipe fits snugly between the two fuel tanks. W

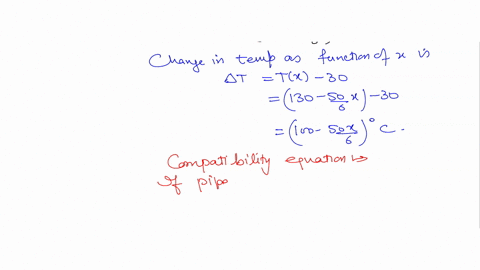

step 1 This question we have to determine the normal stretch in the pipe when they give us the informat

When the temperature is at 30^∘ C, the A-36 steel pipe fits...

When the temperature is at $30^{\circ} \mathrm{C}$, the A-36 steel pipe fits snugly between the two fuel tanks. When fuel flows through the pipe, the temperatures at ends $A$ and $B$ rise to $130^{\circ} \mathrm{C}$ and $80^{\circ} \mathrm{C},$ respectively. If the temperature drop along the pipe is linear, determine the average normal stress developed in the pipe. Assume each tank provides a rigid support at $A$ and $B$

Key Concepts

Thermal Expansion

Thermal expansion refers to the tendency of materials to change in size or shape when subjected to changes in temperature. This concept is crucial in understanding how components will expand or contract when heated or cooled, and is quantified by the coefficient of thermal expansion, a material property that measures the relative change in dimensions per degree change in temperature.

Constrained Thermal Stress

Constrained thermal stress arises when a material that would normally expand or contract due to temperature changes is prevented from doing so by fixed supports or other constraints. When thermal expansion is restricted, internal stresses develop within the material, which can be calculated using thermal strain concepts and the material's elastic modulus.

Linear Temperature Distribution

A linear temperature distribution is an assumption that temperature changes uniformly along the length of a component. This simplifies the analysis of thermal stresses by allowing the use of linear functions to represent temperature variation, which can then be integrated or averaged over the geometry to determine overall effects such as average thermal strain or stress.

Boundary Conditions in Thermal Stress Analysis

Boundary conditions, such as rigid supports, play a critical role in thermal stress analysis because they determine how and where the expansion or contraction is prevented. These conditions are essential in defining the constraints under which a component operates, and they directly influence the magnitude and distribution of thermal stresses within the structure.
