Which way would a compass needle point if you were at the magnetic north pole?

Name: Problem 4, Chapter 21: Holt Physics
Uploaded: 2020-06-19T18:21:04-08:00
Duration: 2 min 19 s
Channel: Jheremiah Simon
Description: Which way would a compass needle point if you were at the magnetic north pole?

step 1 So for this question, we are talking about a compass needle at a magnetic pole of the Earth. Wel

Which way would a compass needle point if you were at the...

Key Concepts

Compass Operation

A compass needle aligns itself with the horizontal component of the Earth's magnetic field. In regions where the magnetic field is predominantly horizontal, such as at mid-latitudes, the compass gives a clear indication of direction. However, near the magnetic poles, where the field lines are vertical, the horizontal component vanishes, which can render a compass unreliable or cause the needle to behave erratically.

Magnetic Dip

Also known as magnetic inclination, this is the angle that the Earth's magnetic field lines make with the horizontal plane. At the magnetic poles, this angle approaches 90 degrees (vertical), significantly reducing the horizontal component that a magnetic compass relies upon to indicate direction.

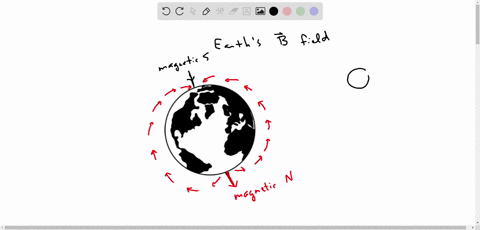

Earth's Magnetic Field

This is the magnetic environment generated by the motion of molten iron within the Earth's outer core. It extends into space and creates magnetic field lines that vary in angle and intensity around the planet. The magnetic field is fundamental to understanding how compasses work and how the geomagnetic poles are defined.

Magnetic North Pole

This is the point on the Earth’s surface where the magnetic field lines are vertical rather than horizontal. At this pole, the magnetic field is directed straight down into the Earth, which makes the usual horizontal component that a compass needle aligns with nearly non-existent.
