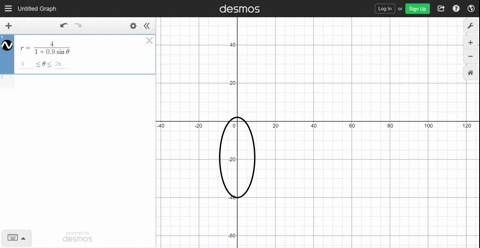

Writing Consider the polar equation $r=\frac{4}{1+e \sin \theta}$. (a) Use a graphing utility to graph the equation for $e=0.1$ $e=0.25, e=0.5, e=0.75,$ and $e=0.9 .$ Identify the conic and discuss the change in its shape as $e \rightarrow 1^{-}$ and $e \rightarrow 0^{+}$ (b) Use a graphing utility to graph the equation for $e=1$ Identify the conic. (c) Use a graphing utility to graph the equation for $e=1.1$ $e=1.5,$ and $e=2 .$ Identify the conic and discuss the change in its shape as $e \rightarrow 1^{+}$ and $e \rightarrow \infty$

Writing Consider the polar equation $r=\frac{4}{1+e \sin \theta}$.
(a) Use a graphing utility to graph the equation for $e=0.1$ $e=0.25, e=0.5, e=0.75,$ and $e=0.9 .$ Identify the conic and discuss the change in its shape as $e \rightarrow 1^{-}$ and $e \rightarrow 0^{+}$
(b) Use a graphing utility to graph the equation for $e=1$ Identify the conic.
(c) Use a graphing utility to graph the equation for $e=1.1$ $e=1.5,$ and $e=2 .$ Identify the conic and discuss the change in its shape as $e \rightarrow 1^{+}$ and $e \rightarrow \infty$

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Polar Equations of Conic Sections

Polar equations of conic sections are expressible in forms such as r = l/(1 + e sin ?) or r = l/(1 + e cos ?), where the equation represents a conic with one focus at the pole. These equations allow a unified approach to describing ellipses, parabolas, and hyperbolas by varying the eccentricity parameter and are crucial for understanding how conics behave in a polar coordinate system.

Eccentricity

Eccentricity is a parameter, denoted by e, that quantifies how much a conic section deviates from being circular. Specifically, an eccentricity less than 1 indicates an ellipse, exactly 1 indicates a parabola, and greater than 1 indicates a hyperbola. This concept is fundamental because it directly controls the shape and type of the conic represented by the polar equation.

Behavior of Conic Sections with Varying Eccentricity

The behavior of conic sections as eccentricity changes is a key concept in understanding conics. As the eccentricity approaches 0, the conic becomes more circular (a special case of the ellipse), whereas as it approaches 1 from below, the ellipse becomes increasingly elongated; at e = 1, the conic becomes a parabola, and for values greater than 1, the conic opens into a hyperbola. This variation helps in visualizing the continuous transformation between different conic shapes.
