You are a NASA mission specialist on your first flight...

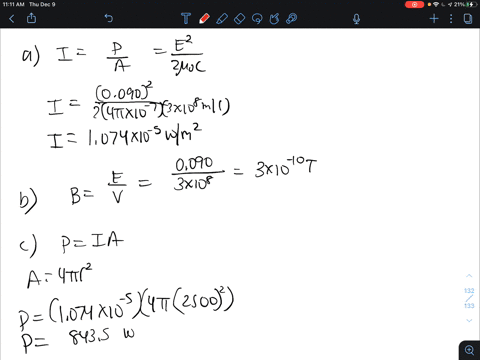

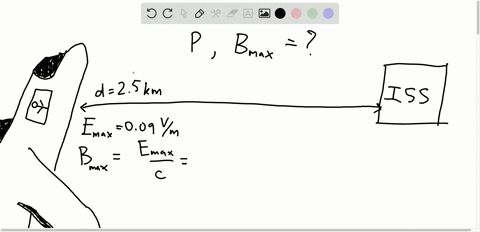

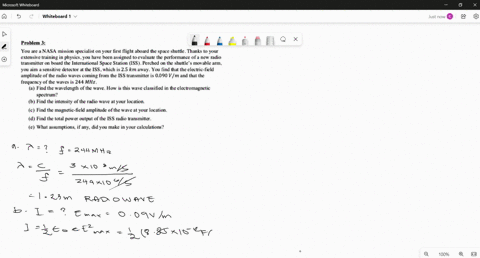

You are a NASA mission specialist on your first flight aboard the space shuttle. Thanks to your extensive training in pliysics, you have been assigned to evaluate the performance of a new radio transmitter on board the International Space Station (ISS). Perched on the shuttle's movable arm, you aim a sensitive detector at the ISS, which is 2.5 $\mathrm{km}$ away. You find that the electric-field amplitude of the radio waves coming from the ISS transmitter is 0.090 $\mathrm{V} / \mathrm{m}$ and that the frequency of the waves is 244 $\mathrm{MHz}$ . Find the following: (a) the intensity of the radio wave at your location; (b) the magnetic-field amplitude of the wave at your location; (c) the total power output of the ISS radio transmitter. (d) What assumptions, if any, did you make in your calculations?

Key Concepts

Electromagnetic Wave Intensity

This concept involves understanding that the intensity of an electromagnetic wave (the average power per unit area) is proportional to the square of the electric field amplitude. In free space, the time-averaged intensity can be expressed using the relation I = (1/2)??cE², where ?? is the permittivity of free space, c is the speed of light, and E is the electric field amplitude. This relation is foundational in analyzing how wave energy is distributed in space.

Electric and Magnetic Field Relationship

In electromagnetic waves, the electric and magnetic fields are intrinsically linked and propagate together as oscillating fields. A key relation is E = cB, where E is the electric field amplitude, B is the magnetic field amplitude, and c is the speed of light. This relationship is central to understanding the balance of energy carried by both fields in an electromagnetic wave and is used to determine one field component when the other is known.

Inverse-Square Law

The inverse-square law is a fundamental principle in physics that describes how the intensity of a wave diminishes as it propagates from a point source. Specifically, for an isotropic radiator, the power spreads uniformly over the surface of a sphere, leading to a decrease in intensity proportional to 1/(4?r²), where r is the distance from the source. This law is crucial when calculating the total power output of a source based on the measured intensity at a given distance.

Assumptions in Free Space Propagation

When analyzing electromagnetic wave behavior, it is common to assume idealized conditions such as free space propagation, where the wave travels without absorption, reflection, or interference from the environment. Additionally, assuming isotropic emission (equal radiation in all directions) simplifies the power calculations by allowing the use of the spherical wave model. These assumptions are vital as they enable tractable mathematical treatment and approximation of real-world scenarios, while acknowledging that real systems might exhibit deviations from these ideal conditions.
