You are conducting experiments to study prototype heat engines. In one test, 4.00 mol of argon gas are taken around the cycle shown in $Fig. P20.57$. The pressure is low enough for the gas to be treated as ideal. You measure the gas temperature in states $a$, $b$, $c$, and $d$ and find $T_a$ = 250.0 $K$, $T_b$ = 300.0 $K$, $T_c$ = 380.0 $K$, and $T_d$ = 316.7 $K$. (a) Calculate the efficiency $e$ of the cycle. (b) Disappointed by the cycle's low efficiency, you consider doubling the number of moles of gas while keeping the pressure and volume the same. What would $e$ be then? (c) You remember that the efficiency of a Carnot cycle increases if the temperature of the hot reservoir is increased. So, you return to using 4.00 mol of gas but double the volume in states $c$ and $d$ while keeping the pressures the same. The resulting temperatures in these states are $T_c$ = 760.0 $K$ and $T_d$ = 633.4 $K$. $T_a$ and $T_b$ remain the same as in part (a). Calculate e for this cycle with the new $T_c$ and $T_d$ values. (d) Encouraged by the increase in efficiency, you raise $T_c$ and $T_d$ still further. But $e$ doesn't increase very much; it seems to be approaching a limiting value. If $T_a$ = 250.0 $K$ and $T_b$ = 300.0 $K$ and you keep volumes $V_a$ and $V_b$ the same as in part (a), then $T_c$/$T_d$ = $T_b$/$T_a$ and $T_c$ = 1.20$T_d$. Derive an expression for $e$ as a function of $T_d$ for this cycle. What value does $e$ approach as $T_d$ becomes very large?

Key Concepts

Thermodynamic State Variables

State variables such as pressure, volume, and temperature uniquely characterize the condition of a system in thermodynamics. In the context of engine cycles, these variables are essential for determining the work done and the heat exchanged during each process, providing the foundation for analyzing cycle efficiency and performance.

Limiting Behavior and Asymptotic Efficiency

In thermodynamic cycles, exploring the behavior of efficiency as certain parameters, such as temperature, approach extreme values reveals inherent performance limits. The concept of asymptotic efficiency helps in understanding how long-term or extreme modifications to the system yield diminishing returns, highlighting the physical constraints placed by thermodynamic laws.

Scaling Effects in Thermodynamic Processes

Scaling effects refer to how changes in parameters like the number of moles or system volume affect the energy exchanges and overall efficiency in a thermodynamic cycle. Understanding these effects is vital, as they can influence the absolute values of work and heat while often leaving the efficiency, a ratio of energies, invariant under certain conditions.

Carnot Cycle and Maximum Efficiency

The Carnot cycle establishes the theoretical maximum efficiency that any heat engine can attain, governed solely by the temperatures of the hot and cold reservoirs. This concept underscores that no engine operating between two fixed temperatures can exceed the Carnot efficiency, which is a fundamental result of thermodynamics.

Heat Engine Efficiency

Heat engine efficiency measures the fraction of heat intake that is converted into useful work. It is defined as the ratio of net work performed over the cycle to the heat input. This concept is critical as it sets the performance benchmark for any engine and underscores the role of reversible and irreversible processes in its operation.

Ideal Gas Behavior

The ideal gas law, stated as pV = nRT, relates the pressure, volume, temperature, and number of moles of a gas. In many thermodynamic problems, especially those involving prototype engines, assuming ideal gas behavior simplifies analysis, as it allows for straightforward calculations of state properties and energy changes during different processes.

Thermodynamic Cycles

A thermodynamic cycle is a series of processes that a working substance undergoes to return to its initial state, allowing the net work output to be extracted. These cycles form the basis of heat engines where energy is transferred, transformed, and cycled to perform work, highlighting the importance of process paths and state variables in determining performance.

Transcript

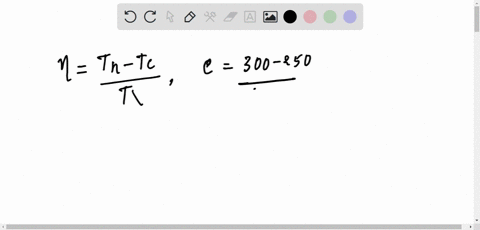

00:01 So this heat engine undergoes the process as shown in the pv diagram where the temperatures at various points a, b, c and d are given.

00:11 So we want to calculate the efficiency of this one cycle of the engine.

00:16 So let us first start by calculating the heat exchange in each process like starting from a b, process a b, qav.

00:25 This is a process which offers a constant volume.

00:30 So our expression for heat exchange at constant volume will be ncb d t so d t is here t b minus t because initial ion minus initial if you substitute in the value of n t b t a and cb okay now wait remember that this the gas that is organ that is a monoatomic gas and for this monoatomic gas you have to consider that cv is equal to 3 by 2 r and cp is equal to 5 by 2 r you know this right specificate capacity at constant volume and specificate capacity at constant so if you substitute the values for m and r is equal to you know r r r is equal to 8 .314 jule per mole per kelvin so if you substitute the value of cv this will give me 3 by 2 nr t b minus t a substitute the values of t b t a n and r the number of modes that we have used here is 4 so you get the value for q a b that comes out to be 2494 .2 jr so let's move on to the next process q bc here the process under goes at constant pressure so n cp d t so the difference in temperature d t is tc minus t b associated the value of cp as 5 by 2r then it will be 5 by 2nr tc minus t b now you know the values of all these parameters just plug those ls in here and you get ubc is equal to c 6651 .2 joles.

03:05 Similarly if we go on to process qcd that occurs at constant volume.

03:11 So again we are back to ncbd.

03:20 So this will give me 3x2 mr td minus tc...
