You are designing the main solenoid for an MRI machine. The...

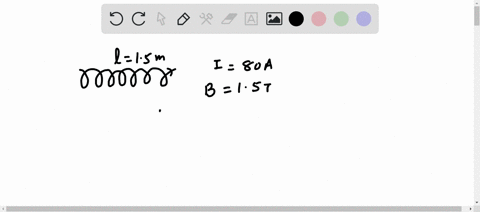

You are designing the main solenoid for an MRI machine. The solenoid should be $1.5 \mathrm{m}$ long. When the current is $80 \mathrm{A},$ the magnetic field inside should be 1.5 T. How many turns should your solenoid have?

Key Concepts

Ampere's Law

Ampere's Law establishes a direct relationship between the magnetic field and the electric current that produces it. By applying Ampere's Law in the context of a solenoid, one derives the formula for the magnetic field inside the coil. This law is central to understanding how to manipulate current and coil geometry to achieve a desired magnetic field.

Magnetic Field of a Solenoid

This concept involves understanding that a solenoid creates a magnetic field which, in the ideal case, is uniform and directly proportional to both the current passing through the coil and the number of turns per unit length. The well-known formula, B = ?? (N/L) I, expresses this relationship, and it is fundamental when designing coils for precise magnetic field applications such as those in MRI machines.

Permeability of Free Space (??)

The permeability of free space, denoted ??, is a fundamental constant in electromagnetism that measures the ability of a vacuum to support a magnetic field. It appears in the solenoid formula as a scaling factor and is essential for relating the electrical current and coil dimensions to the magnetic field strength produced.

Solenoid Design Parameters

This concept highlights the importance of key design parameters such as the length of the solenoid, the current flowing through the coil, the desired magnetic field strength, and the total number of turns. Adjusting these parameters in accordance to B = ?? (N/L) I allows engineers to design coils that meet specific performance criteria, as required in high-precision applications like MRI machines.
