00:01
Hi everyone.
00:02
My name is eric and let's answer problem 11.
00:05

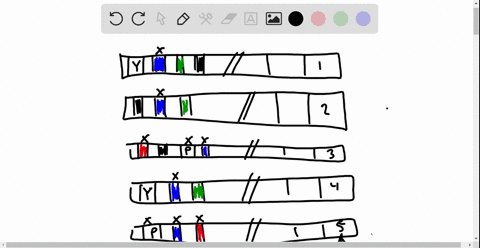

So in this problem, we are presented a figure that is showing us five different genes.
00:12
So there's gene one, two, three, four, and five.
00:18
Okay.
00:19
And these genes are shown on the right hand side of the figure.
00:25
Okay, so the genes are the regions of the dna that are going to code and correspond.
00:32
For our protein, whatever kind of protein that is going to be made.
00:37
And right before the genes, there is what is called a promoter region.
00:42
Now, the promoter region is where the promoter binds so that it can promote that polymerase binding to the dna sequence so that it can be transcribed.
00:53
And on the left -hand side, before the promoter region, what we find is we have enhancers.
01:01
So we have an enhancer region that corresponds to each different kind of gene.
01:12
Two, three, four, and five.
01:15
Okay.
01:16
So in each enhancer region, we have different corresponding colors.
01:22
Okay.
01:23
So the colors represent regions where activator proteins can bind.
01:29
And when activator proteins bind to the enhancer, when we have all the enhancers, it will help promote and activate the gene.
01:38
So that means that it will promote the polymerase to bind, and our gene will be turned on and transcribed.
01:45
So the way it works is that we must have all the colors activated with activators to actually turn on the gene.
01:56
Okay? and when i mean turn on the gene, that means so that the gene can be transcribed into a protein.
02:02
So the first question is part a, and it's asking us to draw an x above all the enhancer elements for activators that would bind to only gene 5.
02:15
So in gene 5, we have three different colors.
02:20
Okay.
02:20
So it would be the purple, the blue, and the red.
02:25
So in purple, blue, and red, looking through all of the figures, and for each gene, we're going to be the purple, we're going to be...
