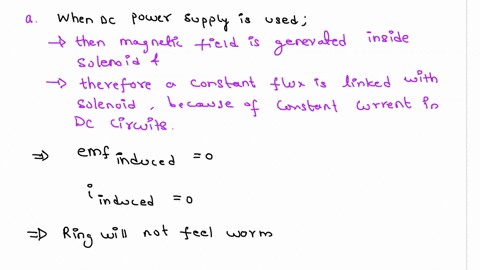

You decide to use a metal ring as an indicator of induced current. If there is a current, the ring will feel warm in your hand. You place the ring around a solenoid as shown in Figure $P 21.2,$ position I. Will the ring feel warm if the solenoid is connected to (a) a DC power supply or (b) an AC power supply? (c) Answer questions (a) and (b) for the case when the ring is parallel to the solenoid (position II). Explain your answers.

You decide to use a metal ring as an indicator of induced current. If there is a current, the ring will feel warm in your hand. You place the ring around a solenoid as shown in Figure $P 21.2,$ position I. Will the ring feel warm if the solenoid is connected to (a) a DC power supply or
(b) an AC power supply? (c) Answer questions
(a) and (b) for the case when the ring is parallel to the solenoid (position II). Explain your
answers.

Key Concepts

Magnetic Flux and Orientation

Magnetic flux is the measure of the total magnetic field passing through a given area and it depends on the orientation of the area relative to the magnetic field lines. The extent of induction in a nearby conductor is greatly influenced by its orientation relative to the magnetic field produced by a primary source; different orientations will intercept the field differently, affecting the magnitude of the induced currents.

Eddy Currents

Eddy currents are loops of electrical current induced within conductors by a changing magnetic field. These circulating currents can lead to resistive heating in the material and are a practical manifestation of the principles of electromagnetic induction. Their strength and distribution depend on the rate of change of the magnetic field and the geometry and orientation of the conductor.

Alternating Current (AC) vs Direct Current (DC) Effects

The effect of AC versus DC on induction centers on whether the magnetic field is varying in time. AC supplies produce time-varying magnetic fields that can induce currents in nearby conductors (resulting in heating due to resistive losses), whereas DC supplies create constant magnetic fields that do not change with time and therefore do not induce significant currents in adjacent conductors.

Electromagnetic Induction

This is the process by which a changing magnetic field produces an electromotive force (EMF) in a conductor. When the magnetic environment around a circuit changes, an electric current is induced in that circuit, which is the fundamental principle behind devices such as transformers, generators, and inductive sensors.

Faraday’s Law of Induction

Faraday’s Law quantifies electromagnetic induction by stating that the induced EMF in a circuit is directly proportional to the rate of change of magnetic flux through the circuit. This law is central to understanding why induced currents occur only when there is a change (or alternating behavior) in the magnetic environment.
