You have made a simple telescope from two convex lenses. The...

Name: Problem 31, Chapter 33: University Physics with Modern Physics
Uploaded: 2021-05-28T08:19:38-08:00
Duration: 1 min 27 s
Channel: Ajay Singhal
Description: You have made a simple telescope from two convex lenses. The objective lens is the one of the two lenses that is closer to the object being observed. What kind of image is produced by the eyepiece lens if the eyepiece is closer to the objective lens than the image produced by the objective lens?

You have made a simple telescope from two convex lenses. The objective lens is the one of the two lenses that is closer to the object being observed. What kind of image is produced by the eyepiece lens if the eyepiece is closer to the objective lens than the image produced by the objective lens?

Key Concepts

Lens Focal Length and Object Placement

Understanding how the object’s distance relative to the focal length of a convex lens affects the type of image produced is crucial. When the object (or, in this case, the intermediate real image) is placed within the focal length of the eyepiece lens, the lens cannot converge the rays to form a real image, and instead they diverge, creating a virtual, enlarged image that can be observed by the eye.

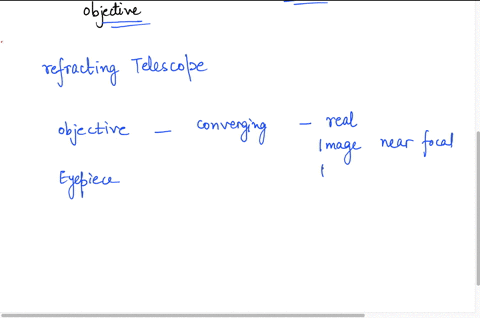

Telescope Optical System Arrangement

The basic configuration of a telescope involves two main lenses: the objective lens, which gathers light and forms an initial real image, and the eyepiece lens, which acts as a magnifier. The relative positions of these components influence the final image type. If the eyepiece is placed closer to the objective lens than the location of the objective's real image, the light entering the eyepiece is diverging, thereby resulting in the formation of an upright, virtual image.

Real vs Virtual Images

A key concept in optics distinguishes between real images, which can be projected onto a screen because they are formed by converging light rays, and virtual images, which cannot be projected because they appear to be located where the rays only seem to originate. In this context, manipulating the position of the eyepiece relative to the real image formed by the objective lens leads to a situation where the eyepiece forms a virtual image.
