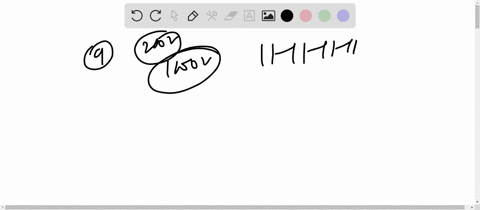

step 1 All right, so for this problem, we want to find out a combination of the capacitors so that we c

You have many 2.0μF capacitors, each capable of with-...

You have many 2.0$\mu \mathrm{F}$ capacitors, each capable of with- standing 200 $\mathrm{V}$ without undergoing electrical breakdown (in which they conduct charge instead of storing it). How would you assemble a combination having an equivalent capacitance of (a) 0.40$\mu \mathrm{F}$ and (b) 1.2$\mu \mathrm{F}$ , each combination capable of withstanding 1000 $\mathrm{v} ?$

You have many 2.0$\mu \mathrm{F}$ capacitors, each capable of with-
standing 200 $\mathrm{V}$ without undergoing electrical breakdown (in which
they conduct charge instead of storing it). How would you assemble a combination having an equivalent capacitance of (a) 0.40$\mu \mathrm{F}$
and (b) 1.2$\mu \mathrm{F}$ , each combination capable of withstanding 1000 $\mathrm{v} ?$

Key Concepts

Series Combination

Connecting capacitors in series means linking them end-to-end so that the same charge passes through each device. In this configuration, the reciprocal of the total capacitance is the sum of the reciprocals of the individual capacitances, resulting in a smaller overall capacitance than any individual capacitor. Importantly, the voltage rating in series becomes the sum of the individual voltage ratings, which is crucial when designing circuits that must withstand higher voltages than a single capacitor can accommodate.

Parallel Combination

When capacitors are connected in parallel, their capacitances add directly, resulting in a total capacitance that is the sum of the individual capacitances. However, the voltage rating of the group remains equal to the rating of the individual capacitors. Parallel configurations are typically used when a higher capacitance is required while the voltage limit remains the same.

Equivalent Capacitance Calculation

Calculating equivalent capacitance depends on how the capacitors are connected. In series, the formula 1/C_total = 1/C1 + 1/C2 + ... is used, leading to a lower effective capacitance, while for parallel connections the total capacitance is simply C_total = C1 + C2 + .... Understanding these calculations is key to designing circuits with specified capacitance values, especially when combining both series and parallel elements.

Voltage Distribution and Rating Enhancement

In a series circuit of identical capacitors, the total applied voltage is evenly divided among them, allowing the overall voltage tolerance to be increased proportionally. This principle is used to safely apply higher voltages to a network of capacitors by ensuring that the voltage across each capacitor does not exceed its rating, which is critical in designing circuits that must operate reliably at high voltages.
