Question

You make a parallel combination of resistors consisting of resistor A having a very large resistance and resistor B having a very small resistance. The equivalent resistance for this combination will be: a) slightly greater than the resistance of the resistor A. b) slightly less than the resistance of the resistor $\mathrm{A}$. c) slightly greater than the resistance of the resistor B. d) slightly less than the resistance of the resistor B.

Name: Problem 2, Chapter 25: University Physics with Modern Physics
Uploaded: 2021-06-21T17:25:28-08:00
Duration: 1 min 51 s
Channel: Vishal Gupta

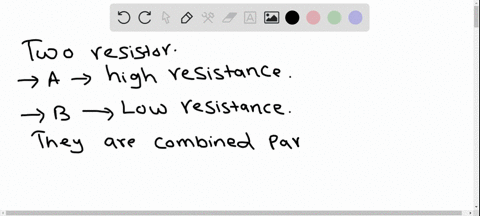

   You make a parallel combination of resistors consisting of resistor A having a very large resistance and resistor B having a very small resistance. The equivalent resistance for this combination will be:
a) slightly greater than the resistance of the resistor A.
b) slightly less than the resistance of the resistor $\mathrm{A}$.
c) slightly greater than the resistance of the resistor B.
d) slightly less than the resistance of the resistor B.

University Physics with Modern Physics

Wolfgang Bauer, Gary… 1st Edition

Chapter 25, Problem 2

Instant Answer

Solved by Expert Vishal Gupta

06/21/2021

Step 1

The formula is given by: \[ \frac{1}{R_{eq}} = \frac{1}{R_A} + \frac{1}{R_B} \] Show more…

Show all steps

Thanks for your feedback!

You make a parallel combination of resistors consisting of resistor A having a very large resistance and resistor B having a very small resistance. The equivalent resistance for this combination will be: a) slightly greater than the resistance of the resistor A. b) slightly less than the resistance of the resistor $\mathrm{A}$. c) slightly greater than the resistance of the resistor B. d) slightly less than the resistance of the resistor B.

Play audio

Feedback

Vishal Gupta and 71 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Parallel Circuits

In a parallel circuit, all components are connected across the same two nodes, meaning each component experiences the same voltage. This configuration allows current to split among the different branches based on their resistances.

Equivalent Resistance in Parallel

The equivalent resistance of a parallel combination can be determined by the reciprocal formula: 1/Req = 1/R1 + 1/R2 + ... + 1/Rn. This means that the overall resistance is lower than the smallest individual resistor in the network, as the current has multiple paths to follow.

Dominance of the Smallest Resistor

When resistors of vastly different values are arranged in parallel, the smallest resistor largely dictates the overall behavior of the circuit. This is because its low resistance provides an easier path for the current, resulting in an equivalent resistance that is only slightly less than the value of the smallest resistor.
