Your car's 30.0-W headlight and 2.40-kW starter are...

Name: Problem 29, Chapter 10: University Physics
Uploaded: 2020-06-29T07:22:19-08:00
Duration: 3 min 28 s
Channel: Ren Jie Tuieng

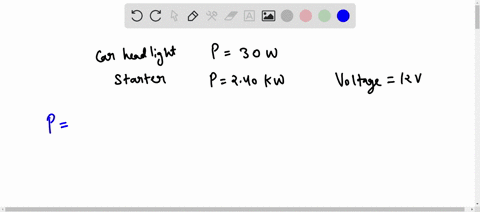

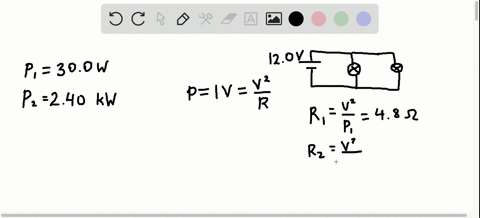

Description: Your car's 30.0-W headlight and 2.40-kW starter are ordinarily connected in parallel in a 12.0 -V system. What power would one headlight and the starter consume if connected in series to a 12.0 -V battery? (Neglect any other resistance in the circuit and any change in resistance in the two devices.)

Your car's 30.0-W headlight and 2.40-kW starter are ordinarily connected in parallel in a 12.0 -V system. What power would one headlight and the starter consume if connected in series to a 12.0 -V battery? (Neglect any other resistance in the circuit and any change in resistance in the two devices.)

Key Concepts

Power Consumption in Resistive Circuits

The power consumed by a resistive element in a circuit can be calculated using formulas like P = I²R or P = V²/R. When devices are connected in series, the voltage drop across each component and the overall current determine how much power each component consumes. This concept is vital for understanding how the change in circuit configuration will affect the performance and power usage of the devices.

Resistance Calculation from Power Ratings

Electrical devices often have specified power ratings at a particular voltage. Using the relationship P = V²/R, one can calculate the effective resistance of a device. Knowing these resistances is key when analyzing a circuit, especially if the configuration changes from parallel to series, as the resistances will determine the voltage drops and the overall current in the circuit.

Parallel Circuit

In a parallel circuit, all components are connected across the same two nodes, so each one experiences the full source voltage. This configuration is typically used to ensure that individual components, such as the headlight and starter motor in a car, receive the correct voltage for proper operation. Understanding the difference between series and parallel configurations is critical for analyzing circuit behavior when the arrangement changes.

Series Circuit

In a series circuit, all components are connected end-to-end so that the same current flows through each. The total voltage from the source is divided among the components according to their resistances, which means that each component does not necessarily receive the full supply voltage. This concept is essential when determining how devices that are normally designed for a fixed voltage operation perform when connected in series.

Ohm's Law

Ohm's Law, which states that voltage equals the product of current and resistance (V = IR), is fundamental in circuit analysis. It is used to determine how the voltage is divided in a series circuit and to compute the currents through various elements based on their resistances. This principle underlies all power and resistance calculations in electrical circuits.
