Your sister who's building the radio (Chapter 27 Exercise...

Your sister who's building the radio (Chapter 27 Exercise 18) wants to use a variable capacitor with her toilet-paper-tube inductor to span the AM radio band $(550-1600 \mathrm{kHz})$. What capacitance range do you suggest?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Variable Capacitance for Tuning

Utilizing a variable capacitor in a resonant circuit provides a method to fine-tune the resonant frequency over a range. This is particularly important in applications like radio receivers, where the ability to adjust the capacitance allows the circuit to be responsive to different parts of the electromagnetic spectrum. By changing the capacitance, the resonant frequency can be shifted to match the targeted frequency band.

LC Circuit Resonance

An LC circuit, often referred to as a tank circuit, is composed of an inductor (L) and a capacitor (C). The circuit resonates at a specific frequency where the energy exchange between the inductor and capacitor occurs optimally. This resonance is key in various applications like radio tuning, where selecting the right frequency is essential.

Resonant Frequency Formula

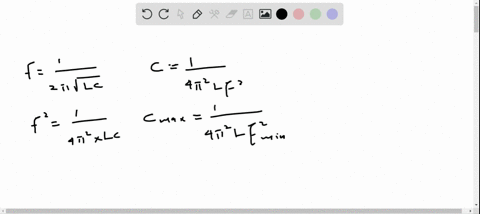

The resonant frequency of an LC circuit is determined by the equation f = 1/(2??(LC)). This relationship makes it possible to calculate one component value (typically the capacitance) required to achieve a desired frequency, given the other component's value. It is a fundamental concept when designing circuits meant to operate at particular frequencies.
