You're considering purchasing a new sleeping bag whose...

You're considering purchasing a new sleeping bag whose manufacturer claims it will keep you warm to $-10^{\circ} \mathrm{F}$. The bag has down insulation with $4.0-\mathrm{cm}$ loft (thickness). Your body produces heat at the rate of $100 \mathrm{~W}$ and has area $1.5 \mathrm{~m}^{2}$. Considering only conductive heat loss, will you be able to maintain normal body temperature in the bag at $-10^{\circ} \mathrm{F}$ ?

Key Concepts

Conduction

Conduction is the mechanism of heat transfer through a material without any movement of the material itself. This concept is governed by Fourier's law, where the rate of heat transfer is directly proportional to the temperature difference and the thermal conductivity of the material, and inversely proportional to the thickness of the material across which the heat is being transferred.

Thermal Resistance

Thermal resistance is a measure of a material's ability to resist the flow of heat. It depends on both the material's thickness and its thermal conductivity. In the context of insulation, a higher thermal resistance means less heat is lost through conduction, which is critical for maintaining a desired temperature in cold environments.

Insulation

Insulation is used to reduce heat loss by trapping air and reducing thermal conduction. Materials such as down provide resistance to heat flow due to their structure and loft, making them effective in maintaining thermal balance by keeping warmth close to the body while minimizing energy lost to the cold surroundings.

Heat Balance

Achieving heat balance means that the internal heat produced by the body is equal to the heat lost to the environment. In scenarios involving insulation, the considerations revolve around whether the insulation's properties are sufficient to prevent excessive heat loss, thereby maintaining the body's thermal equilibrium.

Temperature Gradient

The temperature gradient is the difference in temperature between two points—in this case, the human body and the external environment. This difference serves as the driving force for conductive heat loss, with larger gradients typically resulting in higher rates of heat transfer unless mitigated by adequate insulation.

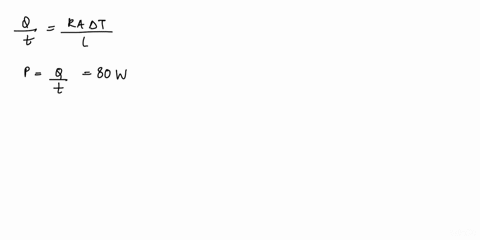

Transcript
