You're writing the instruction manual for a power saw, and you have to specify the maximum permissible length for an extension cord made from $1.5-\mathrm{mm}^{2}$ cross-sectional area copper wire. The saw draws $13.0 \mathrm{~A}$ and needs a minimum of $225 \mathrm{~V}$ across its motor when the outlet supplies $230 \mathrm{~V}$. What do you specify for the maximum length extension cord, given that they come in 5 -meter increments?

Key Concepts

Design Considerations and Standardization

In practical electrical design, components such as extension cords may only be available in standard increments. This factor must be integrated into the overall design process, ensuring that when calculations determine a theoretical maximum length, the final specification conforms to the available standardized measurements to maintain compliance and ease of manufacture.

Safety Margin and Performance Requirements

Electrical devices often have minimum voltage requirements to operate reliably, meaning that any losses due to resistance must be carefully managed. Specifying design parameters such as maximum conductor length ensures that even with these expected losses, the device receives sufficient voltage to function safely and effectively.

Resistivity and Conductor Resistance

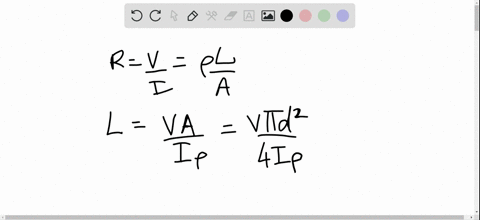

The resistance of a conductor is determined by its material properties, dimensions, and geometry, as expressed by the formula R = ?L/A, where ? is the resistivity, L is the length, and A is the cross-sectional area. This concept underpins the analysis of how conductor length affects the voltage that actually reaches an electrical device.

Application of Ohm's Law

Ohm’s Law, which states V = IR, is a fundamental principle in electrical circuits. It relates the voltage drop (V) across a conductor to the current (I) flowing through it and the resistance (R) of the conductor. This relationship is critical in designing circuits where maintaining a minimum voltage is essential for the proper functioning of electrical appliances.

Voltage Drop

Voltage drop refers to the reduction in electrical potential along the length of a conductor caused by the conductor's resistance. This concept is essential when designing electrical circuits to ensure that devices receive sufficient voltage for proper operation, accounting for the loss that naturally occurs due to the conductor's inherent properties.
