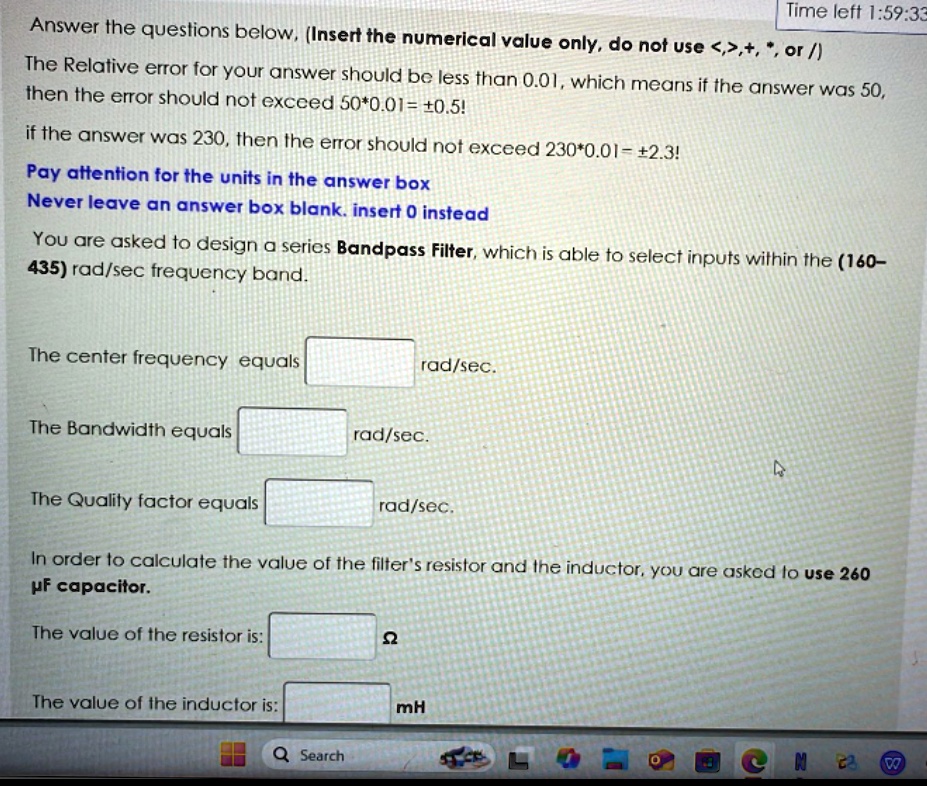

Answer the questions below, (Insert the numerical value only, do not use <,>,+, *, or /)
The Relative error for your answer should be less than 0.01, which means if the answer was 50,
then the error should not exceed 50*0.01= ±0.5!
if the answer was 230, then the error should not exceed 230*0.01-±2.3!
Pay attention for the units in the answer box
Never leave an answer box blank. insert 0 instead
You are asked to design a series Bandpass Filter, which is able to select inputs within the (160-
435) rad/sec frequency band.
The center frequency equals
rad/sec.
The Bandwidth equals
rad/sec.
The Quality factor equals
rad/sec.
In order to calculate the value of the filter's resistor and the inductor, you are asked to use 260
µF capacitor.
The value of the resistor is:
Ω
The value of the inductor is:
mH
