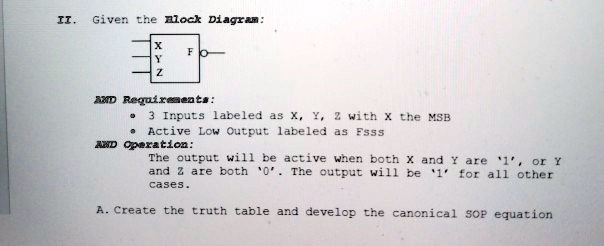

II. Given the Block Diagram:
X
F
Y
Z
AND Requirements:
• 3 Inputs labeled as X, Y, Z with X the MSB
• Active Low Output labeled as Fsss
AND Operation:
The output will be active when both X and Y are '1', or Y
and Z are both '0'. The output will be '1' for all other
cases.
A. Create the truth table and develop the canonical SOP equation
