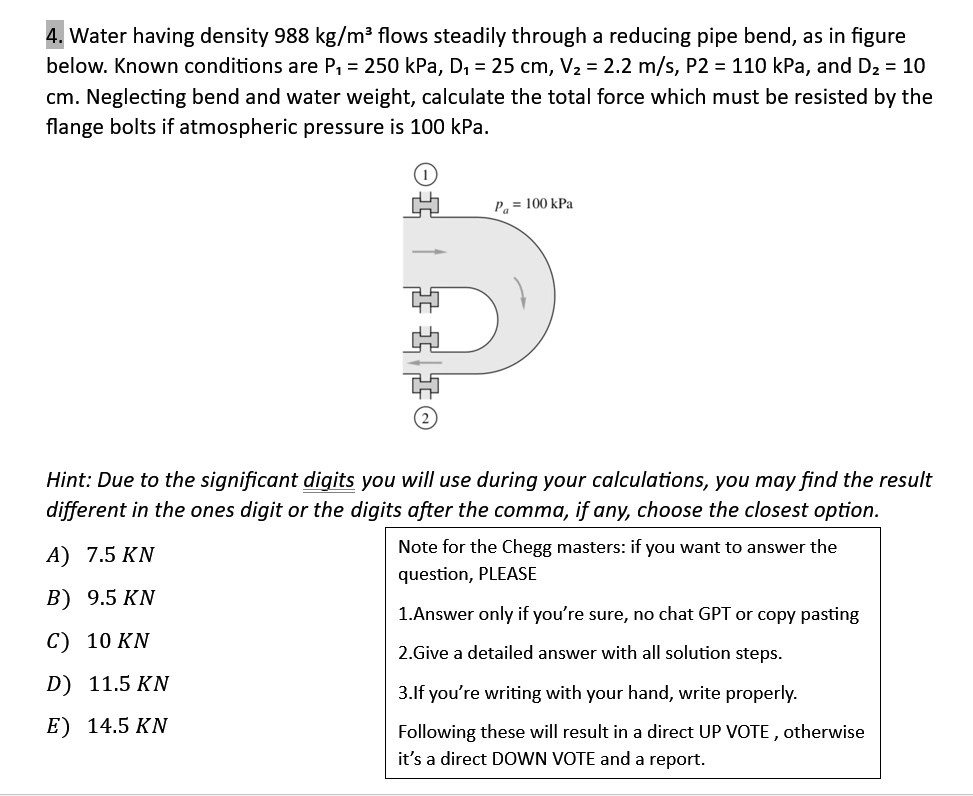

4. Water having density 988 kg/m³ flows steadily through a reducing pipe bend, as in figure
below. Known conditions are $P_1$ = 250 kPa, $D_1$ = 25 cm, $V_2$ = 2.2 m/s, $P_2$ = 110 kPa, and $D_2$ = 10
cm. Neglecting bend and water weight, calculate the total force which must be resisted by the
flange bolts if atmospheric pressure is 100 kPa.
?
$P_a$ = 100 kPa
H
H
H
?
Hint: Due to the significant digits you will use during your calculations, you may find the result
different in the ones digit or the digits after the comma, if any, choose the closest option.
A) 7.5 KN
B) 9.5 KN
C) 10 KN
D) 11.5 KN
E) 14.5 KN
Note for the Chegg masters: if you want to answer the
question, PLEASE
1.Answer only if you're sure, no chat GPT or copy pasting
2.Give a detailed answer with all solution steps.
3.If you're writing with your hand, write properly.
Following these will result in a direct UP VOTE, otherwise
it's a direct DOWN VOTE and a report.
