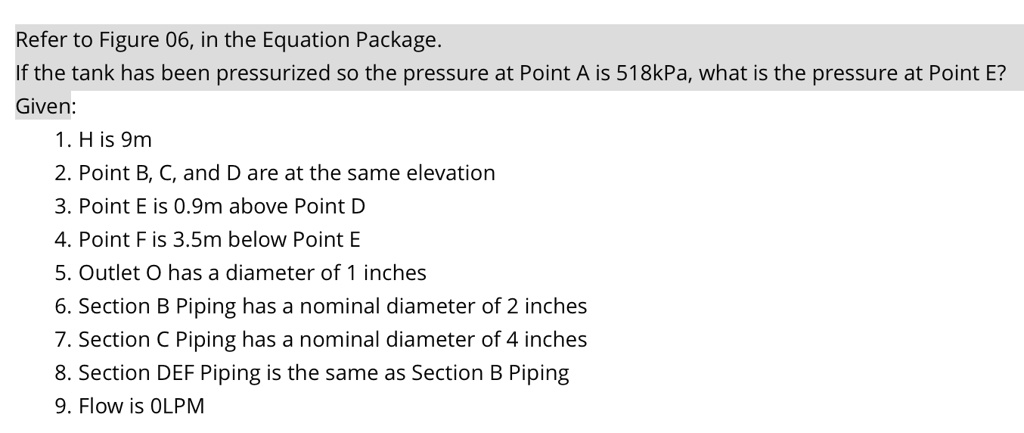

Refer to Figure 06, in the Equation Package.
If the tank has been pressurized so the pressure at Point A is 518kPa, what is the pressure at Point E?
Given:
1. H is 9m
2. Point B, C, and D are at the same elevation
3. Point E is 0.9m above Point D
4. Point F is 3.5m below Point E
5. Outlet O has a diameter of 1 inches
6. Section B Piping has a nominal diameter of 2 inches
7. Section C Piping has a nominal diameter of 4 inches
8. Section DEF Piping is the same as Section B Piping
9. Flow is OLPM
