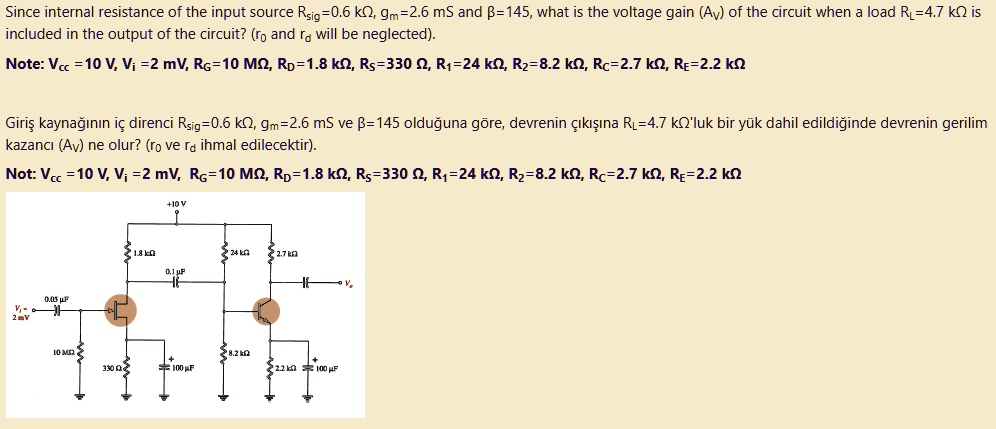

Since internal resistance of the input source Rsig=0.6 ??, gm=2.6 ms and ?=145, what is the voltage gain (Av) of the circuit when a load R?=4.7 k? is included in the output of the circuit? (ro and rd will be neglected).
Note: Vcc = 10 V, Vi =2 mV, RG=10 ??, RD=1.8 ??, Rs=330 ?, R?=24 ??, R2=8.2 ??, RC=2.7 ??, RE=2.2 ??
Giri? kayna??n?n iç direnci Rsig=0.6 k?, gm=2.6 ms ve ?= 145 oldu?una göre, devrenin ç?k???na R?=4.7 k?'luk bir yük dahil edildi?inde devrenin gerilim kazanc? (Av) ne olur? (ro ve rd ihmal edilecektir).
Not: Vcc = 10 V, Vi =2 mV, RG=10 ??, RD=1.8 ??, Rs=330 ?, R?=24 ??, R2=8.2 ??, RC=2.7 ??, RE=2.2 ??
