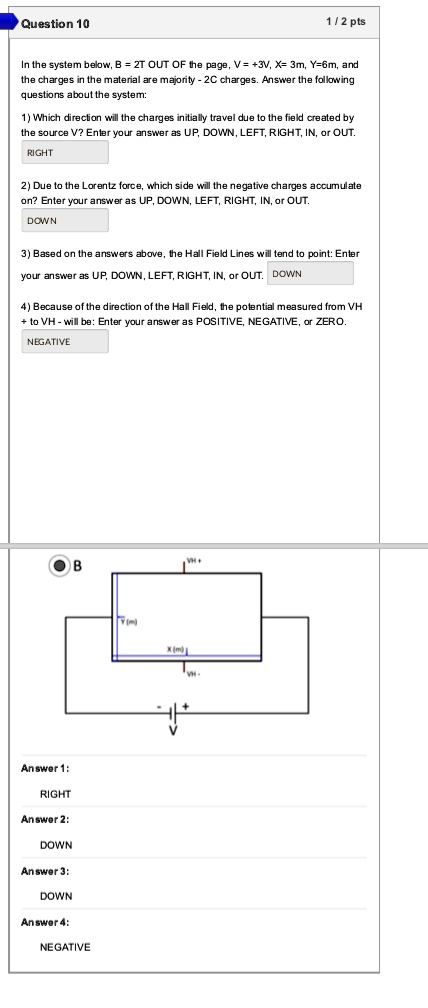

Question 10
1/2 pts
In the system below, B = 2T OUT OF the page, V = +3V, X= 3m, Y=6m, and
the charges in the material are majority - 2C charges. Answer the following
questions about the system:
1) Which direction will the charges initially travel due to the field created by
the source V? Enter your answer as UP, DOWN, LEFT, RIGHT, IN, or OUT.
RIGHT
2) Due to the Lorentz force, which side will the negative charges accumulate
on? Enter your answer as UP, DOWN, LEFT, RIGHT, IN, or OUT.
DOWN
3) Based on the answers above, the Hall Field Lines will tend to point: Enter
your answer as UP, DOWN, LEFT, RIGHT, IN, or OUT. DOWN
4) Because of the direction of the Hall Field, the potential measured from VH
+ to VH- will be: Enter your answer as POSITIVE, NEGATIVE, or ZERO.
NEGATIVE
