Texts: Please show all your work. Thank you!
Solve the following problems:
1. Refer to the given flyback converter circuit diagram. If Vo is 5V for a load resistor, Vin is 30V, N/N is 3, the magnetizing inductance Lmi is 500uH, and the switching frequency f is 40kHz, calculate the duty ratio D, average lin and Iout, and lin(0), lin, lout(0), lout as shown in Fig. 1. Assume lossless conditions.
iin
iout KH N
in
1in(0)
V
jour

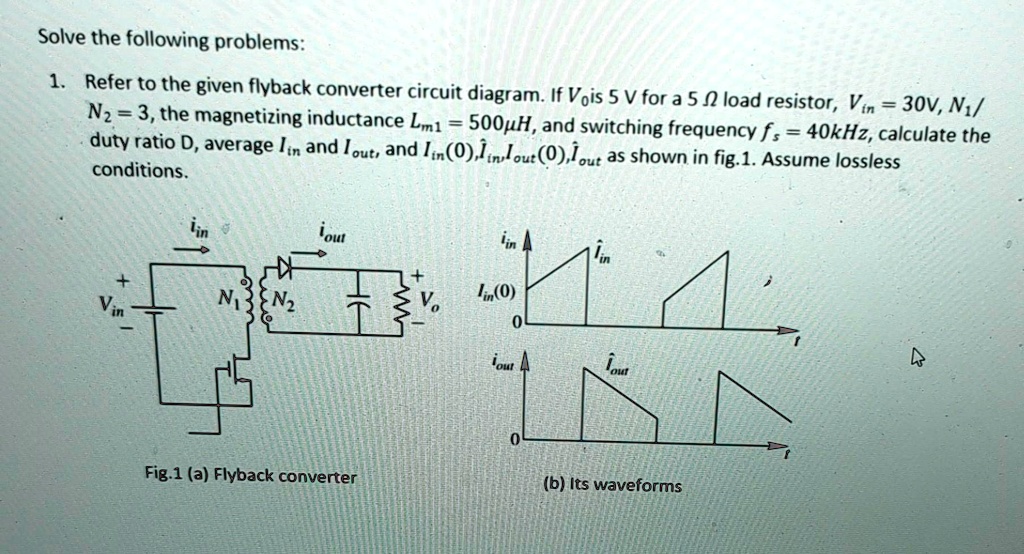

Fig. 1(a) Flyback converter
(b) Its waveforms
