Text: with reg no 21 BCB0215

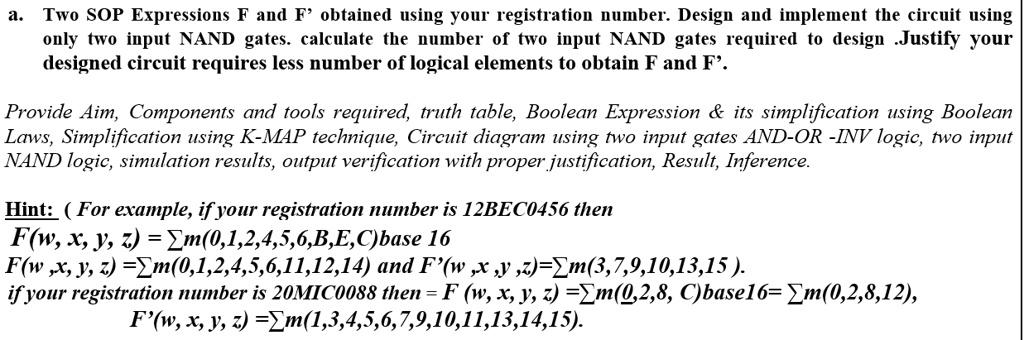

Two SOP Expressions F and F' obtained using your registration number. Design and implement the circuit using the designed circuit requires fewer numbers of logical elements to obtain F and F'.
Provide Aim, Components and tools required, truth table, Boolean Expression & its simplification using Boolean Laws, Simplification using K-MAP technique, Circuit diagram using two-input gates AND-OR-INV logic, two-input NAND logic, simulation results, output verification with proper justification, Result, Inference.
Hint: (For example, if your registration number is 12BEC0456 then F(w,x,y,z) = m(0,1,2,4,5,6,B,E,C) base 16 F(w,x,y,z) = m(0,1,2,4,5,6,11,12,14) and F(w,x,y,z) = m(3,7,9,10,13,15) if your registration number is 20MIC0088 then F(w,x,y,z) = m(0,2,8,C) base 16 = m(0,2,8,12) F'(w,x,y,z) = m(1,3,4,5,6,7,9,10,11,13,14,15).
