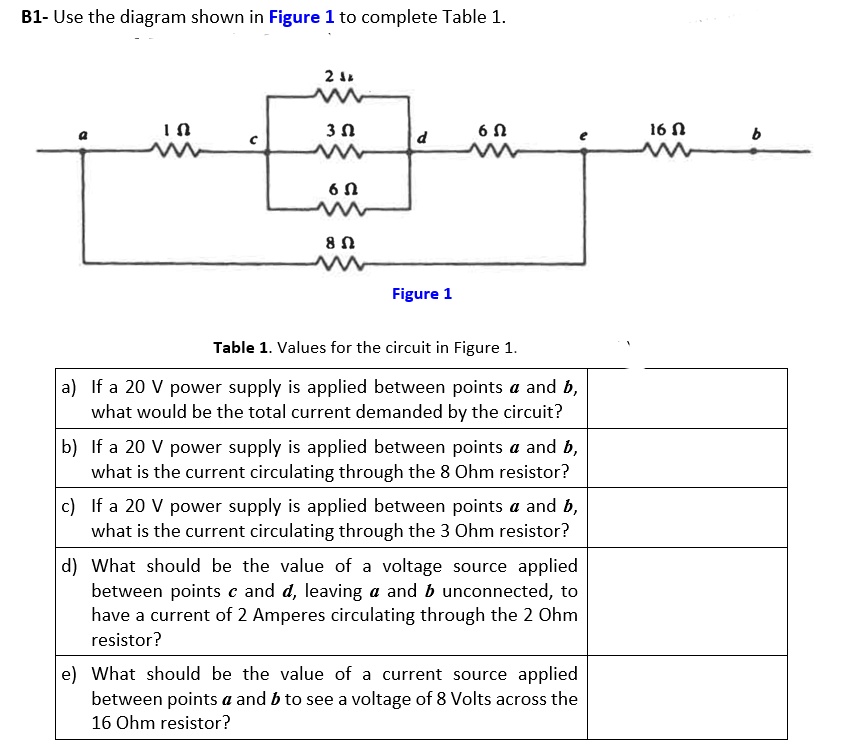

B1- Use the diagram shown in Figure 1 to complete Table 1.
2
??
a
3 ?
6 ?
16 ?
c
d
e
b
6 ?
8 ?
Figure 1
Table 1. Values for the circuit in Figure 1.
a) If a 20 V power supply is applied between points a and b,
what would be the total current demanded by the circuit?
b) If a 20 V power supply is applied between points a and b,
what is the current circulating through the 8 Ohm resistor?
c) If a 20 V power supply is applied between points a and b,
what is the current circulating through the 3 Ohm resistor?
d) What should be the value of a voltage source applied
between points c and d, leaving a and b unconnected, to
have a current of 2 Amperes circulating through the 2 Ohm
resistor?
e) What should be the value of a current source applied
between points a and b to see a voltage of 8 Volts across the
16 Ohm resistor?
