QUESTION 3

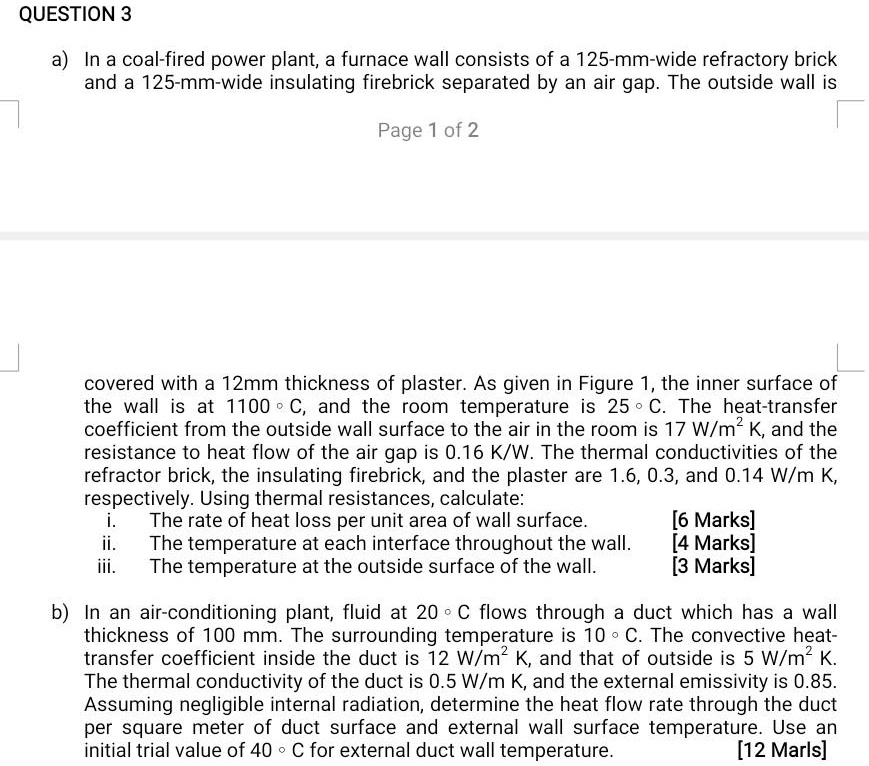

a) In a coal-fired power plant, a furnace wall consists of a 125-mm-wide refractory brick and a 125-mm-wide insulating firebrick separated by an air gap. The outside wall is covered with a 12mm thickness of plaster. As given in Figure 1, the inner surface of the wall is at 1100°C, and the room temperature is 25°C. The heat-transfer coefficient from the outside wall surface to the air in the room is 17 W/mK, and the resistance to heat flow of the air gap is 0.16 K/W. The thermal conductivities of the refractory brick, the insulating firebrick, and the plaster are 1.6, 0.3, and 0.14 W/mK respectively. Using thermal resistances, calculate:
i. The rate of heat loss per unit area of wall surface [6 Marks]
ii. The temperature at each interface throughout the wall. [4 Marks]
iii. The temperature at the outside surface of the wall. [3 Marks]
