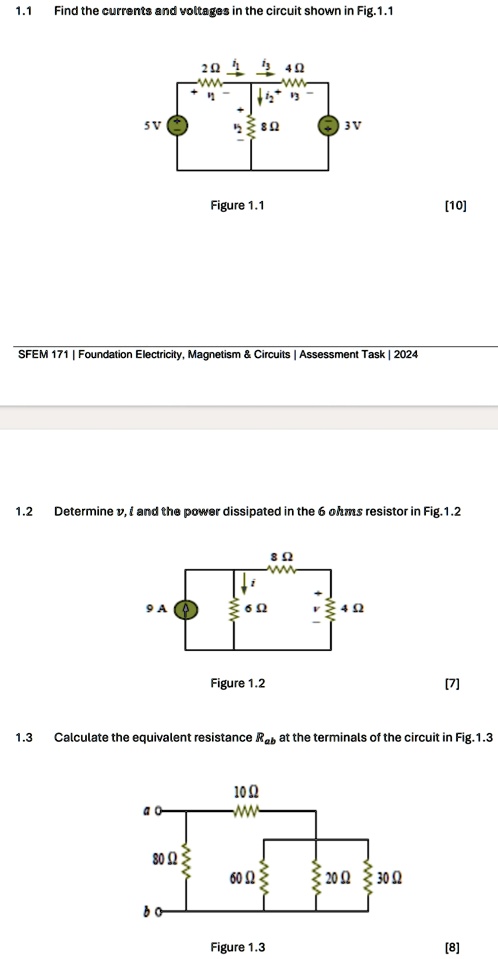

1.1 Find the currents and voltages in the circuit shown in Fig.1.1
5V
2?
4?
www
8?
Figure 1.1
3V
SFEM 171 | Foundation Electricity, Magnetism & Circuits | Assessment Task | 2024
[10]
1.2 Determine v, i and the power dissipated in the 6 ohms resistor in Fig.1.2
9A
W
8?
6?
4?
Figure 1.2
[7]
1.3 Calculate the equivalent resistance $R_{ab}$ at the terminals of the circuit in Fig.1.3
ao-
10 ?
www
80 ?
60 ?
20 ?
30 ?
bo
Figure 1.3
[8]
