Questions asked

INSTANT ANSWER

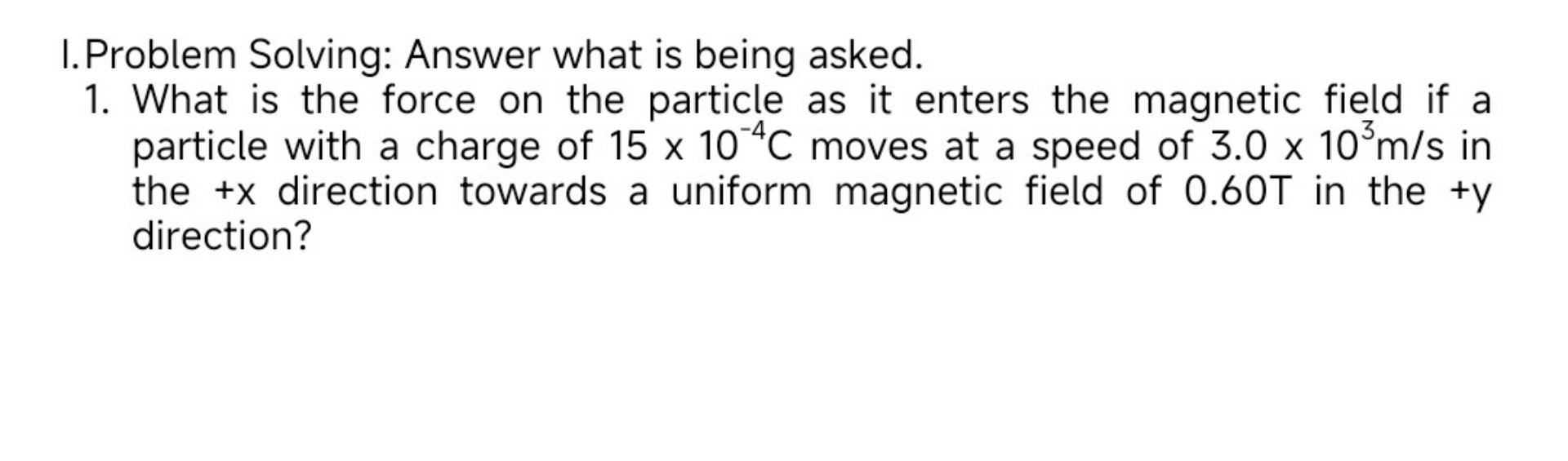

I.Problem Solving: Answer what is being asked. 1. What is the force on the particle as it enters the magnetic field if a particle with a charge of \( 15 \times 10^{-4} \mathrm{C} \) moves at a speed of \( 3.0 \times 10^{3} \mathrm{~m} / \mathrm{s} \) in the \( +x \) direction towards a uniform magnetic field of 0.60 T in the +y direction?

View Answer
divider
INSTANT ANSWER

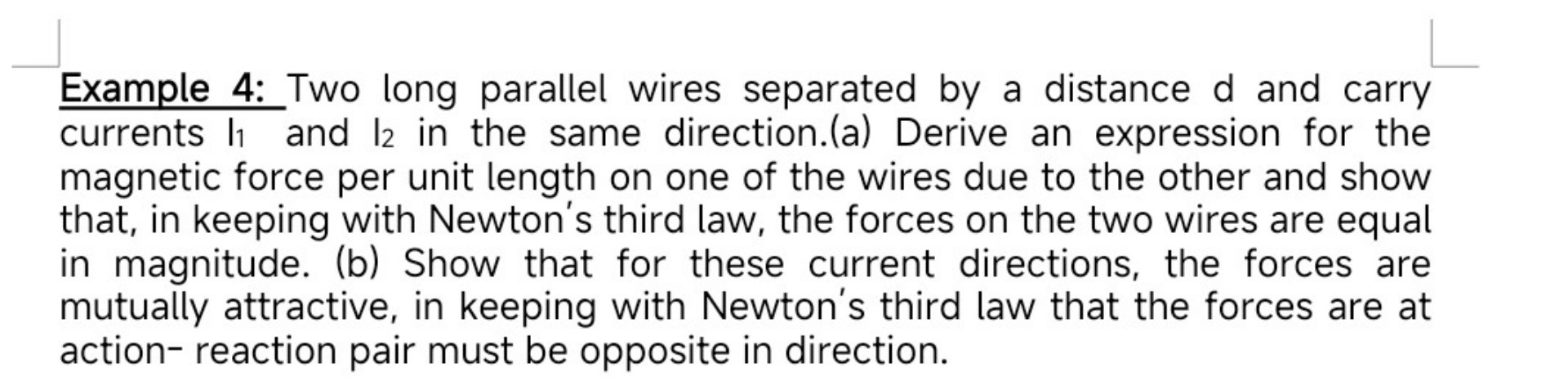

Example 4: Two long parallel wires separated by a distance \( d \) and carry currents \( I_{1} \) and \( I_{2} \) in the same direction.(a) Derive an expression for the magnetic force per unit length on one of the wires due to the other and show that, in keeping with Newton's third law, the forces on the two wires are equal in magnitude. (b) Show that for these current directions, the forces are mutually attractive, in keeping with Newton's third law that the forces are at action- reaction pair must be opposite in direction.

View Answer
divider
ANSWERED

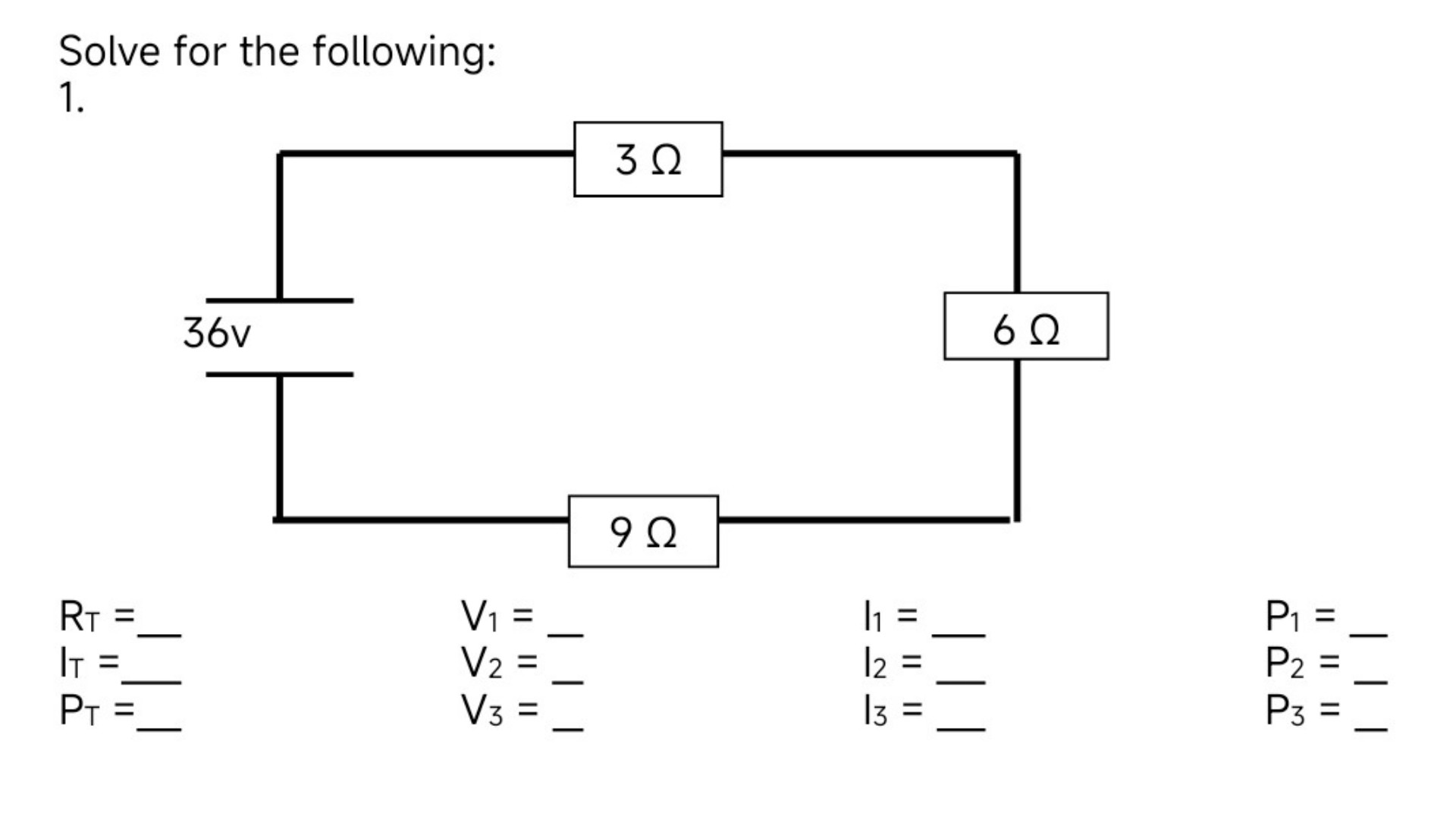

Solve for the following: 1. \[ \mathrm{R}_{\mathrm{T}}= \] \( \qquad \) \( \mathrm{V}_{1}= \) \( h_{1}= \) \( \qquad \) \[ P_{1}= \] \( \left.\right|_{T}= \) \( \qquad \) \( V_{2}= \) \( \square \) \( 1_{2}= \) \( \qquad \) \( \mathrm{P}_{2}= \) \( \mathrm{P}_{\mathrm{T}}= \) \( \qquad \) \( V_{3}= \) \( 13= \) \( \qquad \) \[ P_{3}= \]

View Answer
divider
INSTANT ANSWER

Example 3: Three resistors are connected in parallel across a 36.0-volt battery. Use Kirchhoff's rule to calculate (a) the current through each resistor and the battery and (b) the equivalent resistance of the pair.

View Answer
divider
INSTANT ANSWER

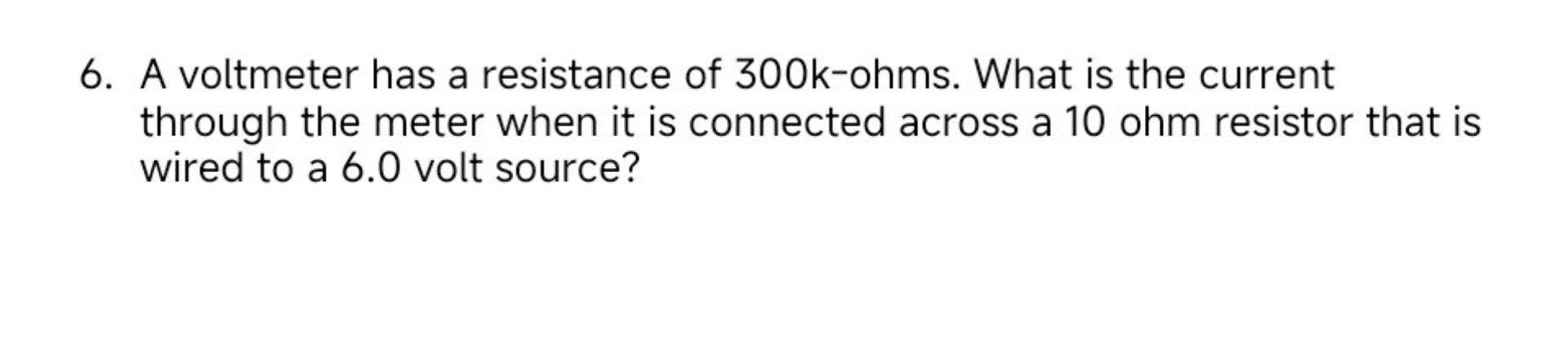

6. A voltmeter has a resistance of 300 k -ohms. What is the current through the meter when it is connected across a 10 ohm resistor that is wired to a 6.0 volt source?

View Answer
divider
ANSWERED

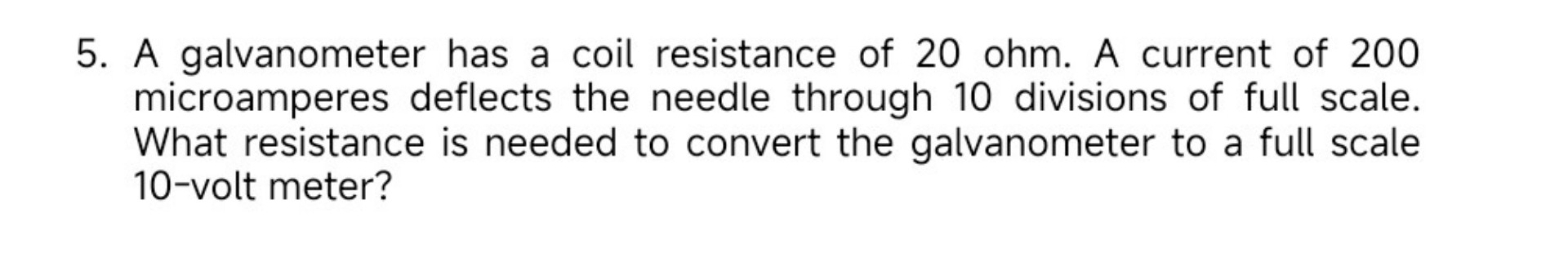

5. A galvanometer has a coil resistance of 20 ohm. A current of 200 microamperes deflects the needle through 10 divisions of full scale. What resistance is needed to convert the galvanometer to a full scale 10-volt meter?

View Answer
divider
ANSWERED

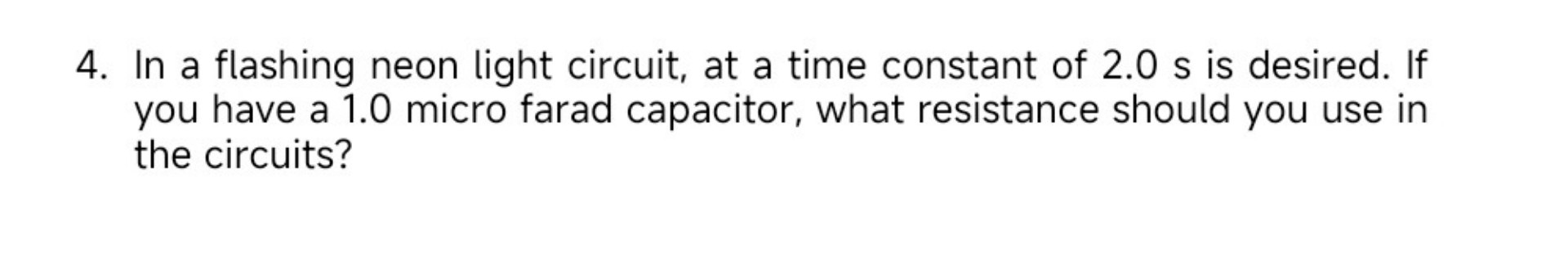

4. In a flashing neon light circuit, at a time constant of 2.0 s is desired. If you have a 1.0 micro farad capacitor, what resistance should you use in the circuits?

View Answer
divider
ANSWERED

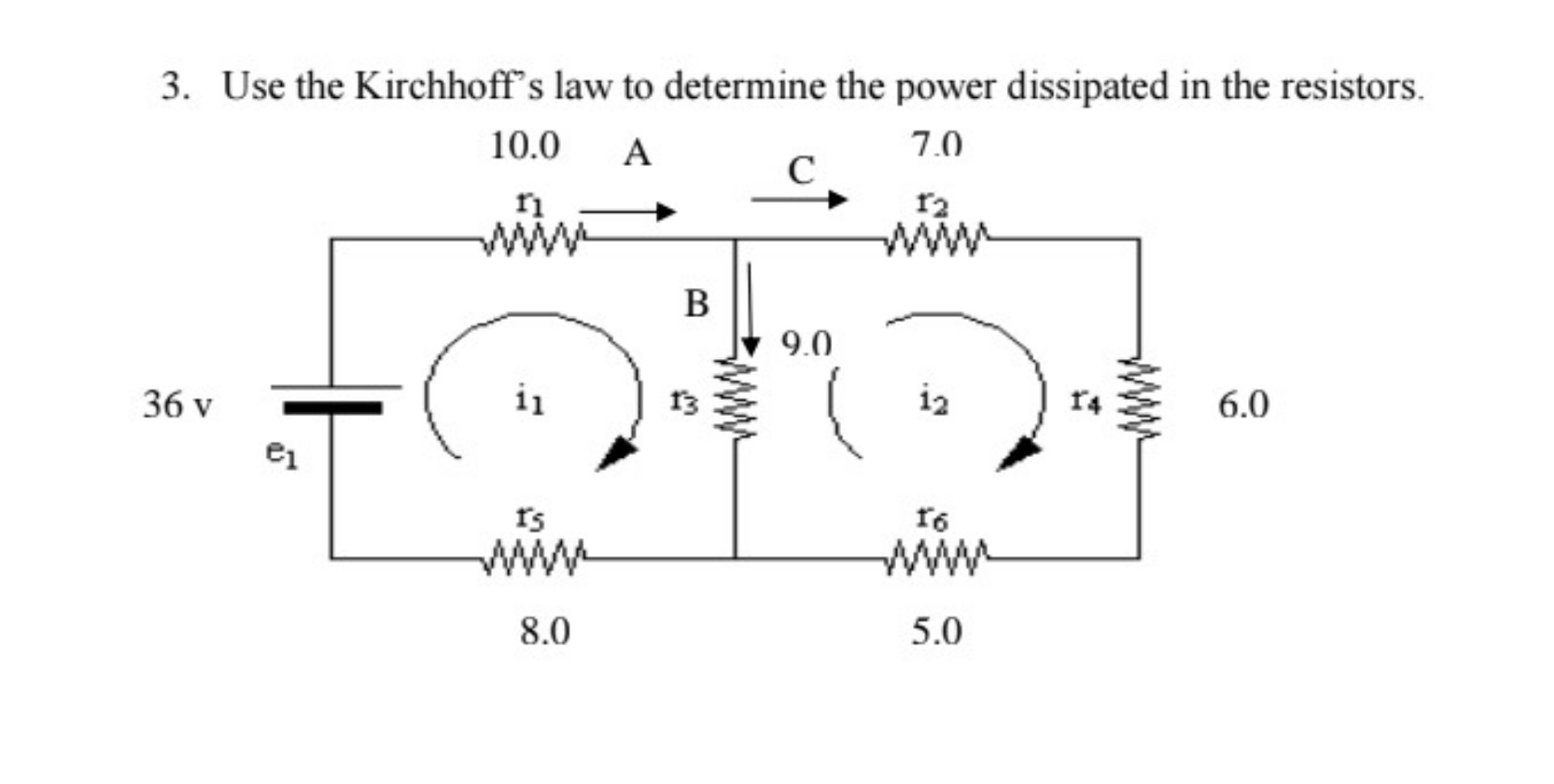

3. Use the Kirchhoff's law to determine the power dissipated in the resistors.

View Answer
divider
ANSWERED

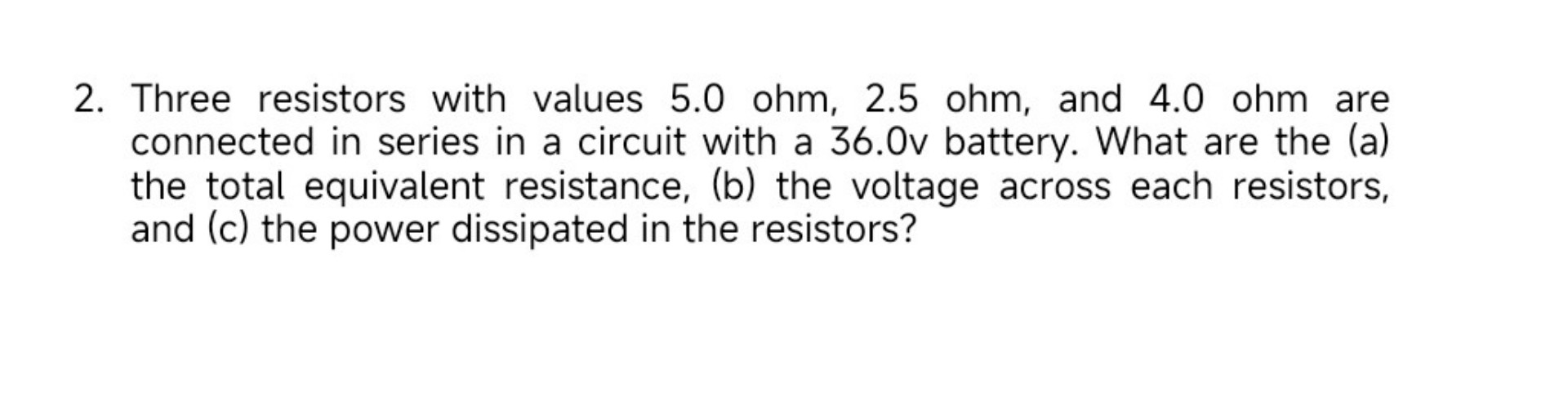

2. Three resistors with values 5.0 ohm, 2.5 ohm, and 4.0 ohm are connected in series in a circuit with a 36.0 v battery. What are the (a) the total equivalent resistance, (b) the voltage across each resistors, and (c) the power dissipated in the resistors?

View Answer
divider
ANSWERED

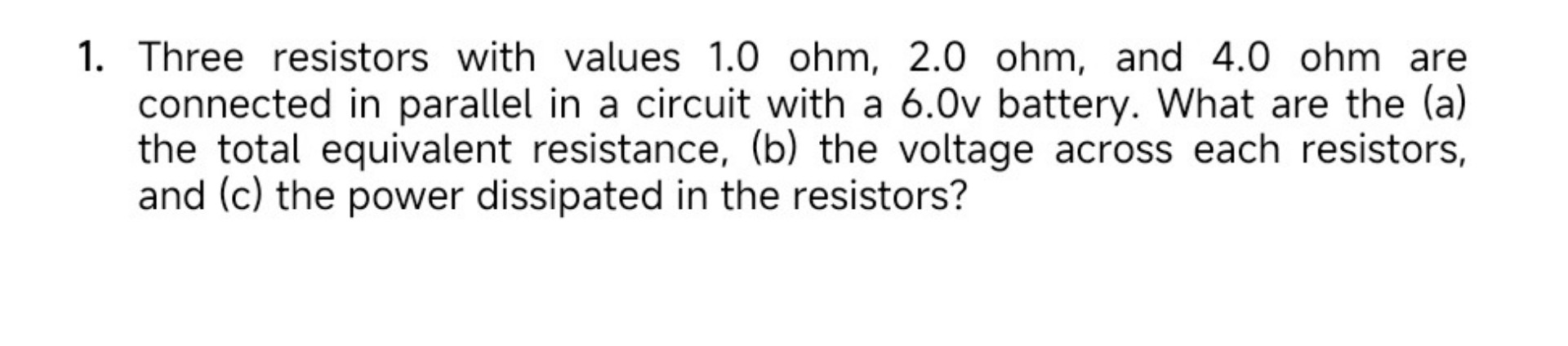

1. Three resistors with values 1.0 ohm, 2.0 ohm, and 4.0 ohm are connected in parallel in a circuit with a 6.0 v battery. What are the (a) the total equivalent resistance, (b) the voltage across each resistors, and (c) the power dissipated in the resistors?

View Answer
divider
