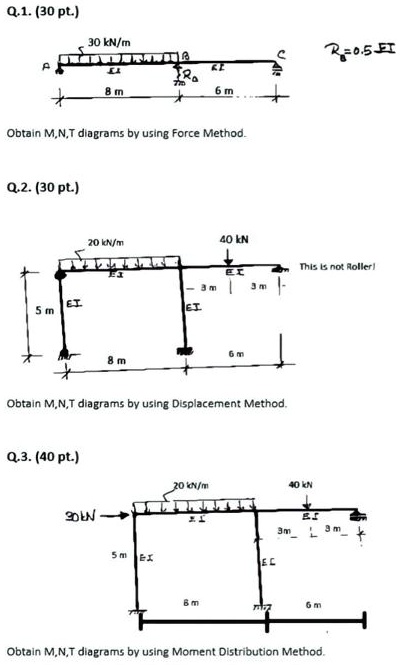

Q.1. (30 pt.)
30 kN/m
C
R=0.5 EI
A
RE
R
770
8 m
6 m
Obtain M,N,T diagrams by using Force Method.
Q.2. (30 pt.)
ET
5 m
20 kN/m
40 kN
This is not Roller!
EX
3 m
3 m
EI
8 m
6 m
Obtain M,N,T diagrams by using Displacement Method.
Q.3. (40 pt.)
20 kN/m
40 kN
300N
5 m
?
Bm
3m
3m
EL
????
6 m
Obtain M,N,T diagrams by using Moment Distribution Method.
