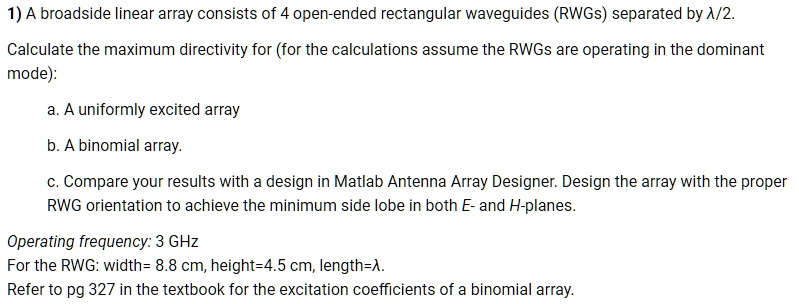

1) A broadside linear array consists of 4 open-ended rectangular waveguides (RWGs) separated by \lambda/2.
Calculate the maximum directivity for (for the calculations assume the RWGs are operating in the dominant
mode):
a. A uniformly excited array
b. A binomial array.
c. Compare your results with a design in Matlab Antenna Array Designer. Design the array with the proper
RWG orientation to achieve the minimum side lobe in both E- and H-planes.
Operating frequency: 3 GHz
For the RWG: width= 8.8 cm, height=4.5 cm, length=\lambda.
Refer to pg 327 in the textbook for the excitation coefficients of a binomial array.
