Shapes.1.cpp
#include
#include
#include
#include
#include
#include
using namespace std;
void calculateSquare(double side) {
double area = side * side;
double perimeter = 4 * side;
cout << "SQUARE side=" << side << " area=" << area << " perimeter=" << perimeter << endl;
}
void calculateRectangle(double length, double width) {
double area = length * width;
double perimeter = 2 * (length + width);
cout << "RECTANGLE length=" << length << " width=" << width << " area=" << area << " perimeter=" << perimeter << endl;
}
void calculateCircle(double radius) {
double area = M_PI * radius * radius;
double perimeter = 2 * M_PI * radius;
cout << "CIRCLE radius=" << radius << " area=" << area << " perimeter=" << perimeter << endl;
}
void calculateCube(double side) {
double surfaceArea = 6 * side * side;
double volume = side * side * side;
cout << "CUBE side=" << side << " surface area=" << surfaceArea << " volume=" << volume << endl;
}
void calculateBox(double length, double width, double height) {
double surfaceArea = 2 * (length * width + length * height + width * height);
double volume = length * width * height;
cout << "BOX length=" << length << " width=" << width << " height=" << height << " surface area=" << surfaceArea << " volume=" << volume << endl;
}
void calculateCylinder(double radius, double height) {
double surfaceArea = 2 * M_PI * radius * (radius + height);
double volume = M_PI * radius * radius * height;
cout << "CYLINDER radius=" << radius << " height=" << height << " surface area=" << surfaceArea << " volume=" << volume << endl;
}
void calculatePrism(double side, double height) {
double area = (sqrt(3) / 4) * side * side;
double surfaceArea = 3 * area + 2 * side * height;
double volume = area * height;
cout << "PRISM side=" << side << " height=" << height << " surface area=" << surfaceArea << " volume=" << volume << endl;
}
void handleInvalidObject(const string& objectName) {
cout << objectName << " invalid object" << endl;
}
int main() {
ifstream inputFile("Shapes.input.txt");
string line;
while (getline(inputFile, line)) {
if (line.empty()) {
continue;
}
istringstream iss(line);
string shape;
iss >> shape;
if (shape == "SQUARE") {
double side = 0;
iss >> side;
if (side > 0) {
calculateSquare(side);
} else {
handleInvalidObject("SQUARE");
}
} else if (shape == "RECTANGLE") {
double length = 0, width = 0;
iss >> length >> width;
if (length > 0 && width > 0) {
calculateRectangle(length, width);
} else {
handleInvalidObject("RECTANGLE");
}
} else if (shape == "CIRCLE") {
double radius = 0;
iss >> radius;
if (radius > 0) {
calculateCircle(radius);
} else {
handleInvalidObject("CIRCLE");
}
} else if (shape == "CUBE") {
double side = 0;
iss >> side;
if (side > 0) {
calculateCube(side);
} else {
handleInvalidObject("CUBE");
}
} else if (shape == "BOX") {
double length = 0, width = 0, height = 0;
iss >> length >> width >> height;
if (length > 0 && width > 0 && height > 0) {
calculateBox(length, width, height);
} else {
handleInvalidObject("BOX");
}
} else if (shape == "CYLINDER") {
double radius = 0, height = 0;
iss >> radius >> height;
if (radius > 0 && height >= 0) {
calculateCylinder(radius, height);
} else {
handleInvalidObject("CYLINDER");
}
} else if (shape == "PRISM") {
double side = 0, prismHeight = 0;
iss >> side >> prismHeight;
if (side > 0 && prismHeight >= 0) {
calculatePrism(side, prismHeight);
} else {
handleInvalidObject("PRISM");
}
} else {
handleInvalidObject(shape);
}
}
inputFile.close();
return 0;
}

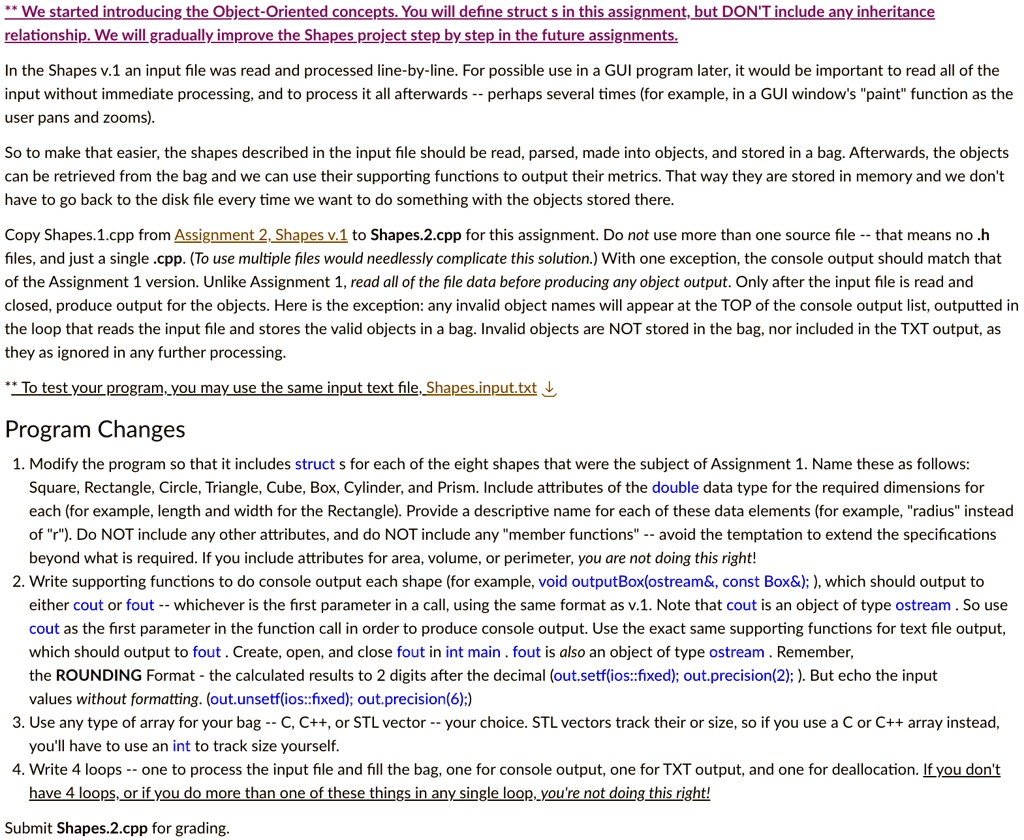

** We started introducing the Object-Oriented concepts.You will define struct s in this assignment,but DON'T include any inheritance
relationship.We will gradually improve the Shapes project step by step in the future assignments
In the Shapes v.1 an input file was read and processed line-by-line.For possible use in a GUI program later,it would be important to read all of the
input without immediate processing,and to process it all afterwards -- perhaps several times (for example, in a GUI window's "paint" function as the
user pans and zooms).
So to make that easier,the shapes described in the input file should be read,parsed,made into objects,and stored in a bag.Afterwards,the objects
can be retrieved from the bag and we can use their supporting functions to output their metrics.That way they are stored in memory and we don't
have to go back to the disk file every time we want to do something with the objects stored there.
Copy Shapes.1.cpp from Assignment 2, Shapes v.1 to Shapes.2.cpp for this assignment. Do not use more than one source file -- that means no .h files, and just a single .cpp. (To use multiple files would needlessly complicate this solution.) With one exception, the console output should match that of the Assignment 1 version.Unlike Assignment 1,read all of the file data before producing any object output.Only after the input file is read and closed,produce output for the objects.Here is the exception: any invalid object names will appear at the TOP of the console output list,outputted in the loop that reads the input file and stores the valid objects in a bag.Invalid objects are NOT stored in the bag,nor included in the TXT output,as they as ignored in any further processing.
** To test your program,_you may use the same input text file,_Shapes.input.txt
Program Changes
1.Modify the program so that it includes struct s for each of the eight shapes that were the subject of Assignment 1.Name these as follows:
Square,Rectangle,Circle,Triangle,Cube,Box,Cylinder,and Prism.Include attributes of the double data type for the required dimensions for
each (for example,length and width for the Rectangle).Provide a descriptive name for each of these data elements (for example,"radius"instead
of "r").Do NOT include any other attributes,and do NOT include any"member functions"--avoid the temptation to extend the specifications
beyond what is required. If you include attributes for area,volume,or perimeter,you are not doing this right!
2. Write supporting functions to do console output each shape (for example, void outputBox(ostream&, const Box&); ), which should output to either cout or fout --whichever is the first parameter in a call,using the same format as v.1.Note that cout is an object of type ostream.So use
cout as the first parameter in the function call in order to produce console output.Use the exact same supporting functions for text file output,
the ROUNDING Format-the calculated results to 2 digits after the decimal(out.setf(ios:fixed);out.precision(2):.But echo the input
values without formatting.(out.unsetf(ios::fixed); out.precision(6);)
3.Use any type of array for your bag--C,C++,or STL vector--your choice.STL vectors track their or size,so if you use a C or C++ array instead
you'll have to use an int to track size yourself
4.Write 4 loops --one to process the input file and fill the bag,one for console output,one for TxT output,and one for deallocation.If you don't
have 4 loops,or if you do more than one of these things in any single loop,you're not doing this right!
Submit Shapes.2.cpp for grading.
