V: 932 mV
V(p-p): 0V
V(rms): 0V
V(do): 932 mV
V(freq):-
I: 1.81 mA
I(p-p): 0 A
I(rms): 0 A
I(do): 1.81 mA
I(freq): -
R2
100?
A
PR2
5
V: 22.9 V
V(p-p): 3.25 pV
V(rms): 0V
V(do): 22.9 V
V(freq):
I: 71.2 mA
I(p-p): 0 A
I(rms): 71.2 mA
I(do): 71.2 mA
I(freq):-
R = 100
R1
Q1
1
PR3 3
2N2222*
V2
10V
5.00k?
PR1
V: 0 V
V(p-p): 0 V
V(rms): 0 V
V(do): 0 V
V(freq): -
I: 73.0 mA
I(p-p): 0 A
I(rms): 73.0 mA
I(do): 73.0 mA
I(freq):-
V1
30V

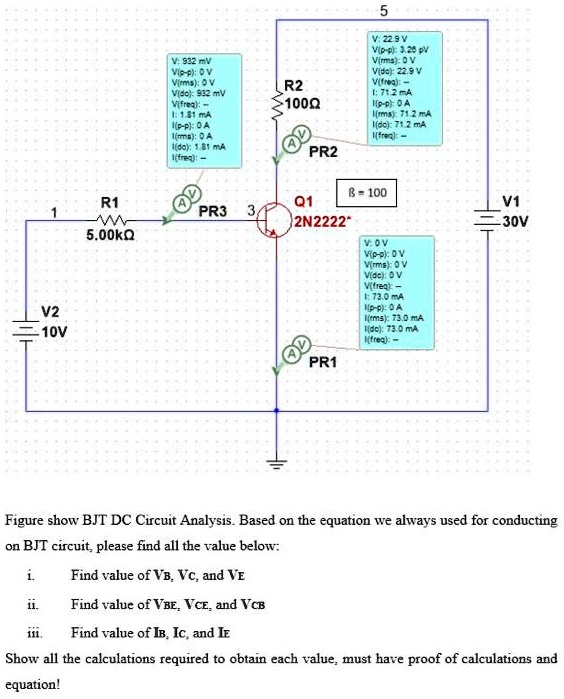

Figure show BJT DC Circuit Analysis. Based on the equation we always used for conducting
on BJT circuit, please find all the value below:
i.
Find value of VB, VC, and VE
ii.
Find value of VBE, VCE, and VCB
iii. Find value of IB, IC, and IE
Show all the calculations required to obtain each value, must have proof of calculations and
equation!
