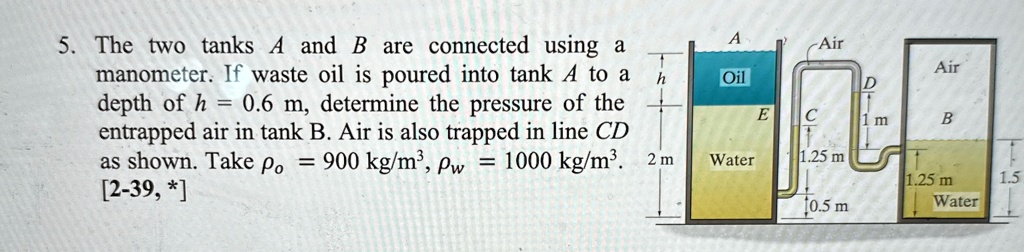

5. The two tanks A and B are connected using a
manometer. If waste oil is poured into tank A to a
depth of h = 0.6 m, determine the pressure of the
entrapped air in tank B. Air is also trapped in line CD
as shown. Take $\rho_o$ = 900 kg/m³, $\rho_w$ = 1000 kg/m³.
[2-39, *]
A
Air
Air
h
Oil
D
E
C
1 m
B
2 m
Water
1.25 m
1.25 m
1.5
10.5 m
Water
