Question 1
100 pts

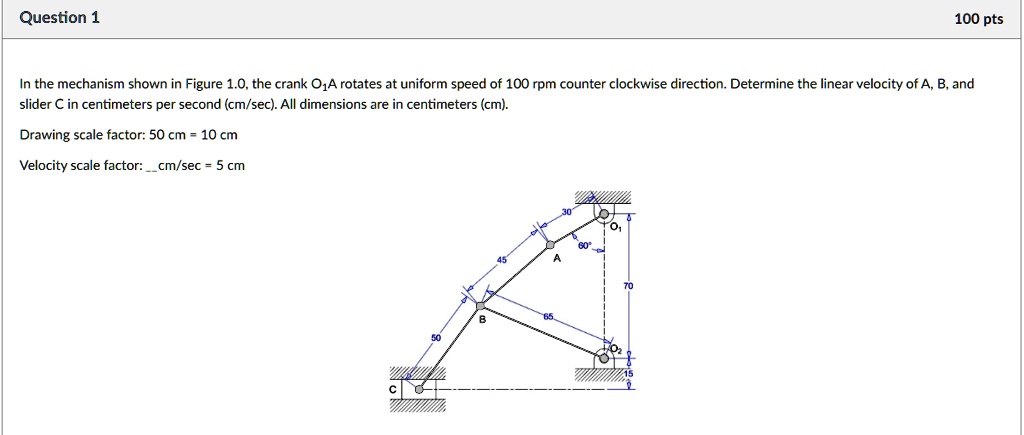

In the mechanism shown in Figure 1.0, the crank O$_1$A rotates at uniform speed of 100 rpm counter clockwise direction. Determine the linear velocity of A, B, and slider C in centimeters per second (cm/sec). All dimensions are in centimeters (cm).
Drawing scale factor: 50 cm = 10 cm
Velocity scale factor: __ cm/sec = 5 cm
