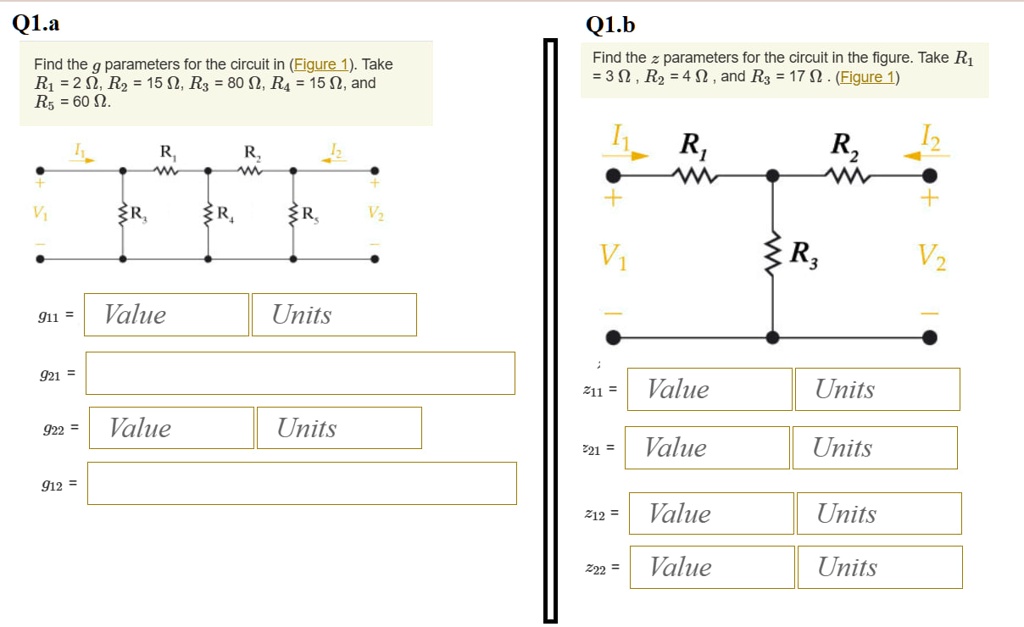

Q1.a
Find the g parameters for the circuit in (Figure 1). Take
$R_1 = 2 \, \Omega$, $R_2 = 15 \, \Omega$, $R_3 = 80 \, \Omega$, $R_4 = 15 \, \Omega$, and
$R_5 = 60 \, \Omega$.
$g_{11} = $ Value Units
$g_{21} = $
$g_{22} = $ Value Units
$g_{12} = $
Q1.b
Find the z parameters for the circuit in the figure. Take $R_1 = 3 \, \Omega$, $R_2 = 4 \, \Omega$, and $R_3 = 17 \, \Omega$. (Figure 1)
$z_{11} = $ Value Units
$z_{21} = $ Value Units
$z_{12} = $ Value Units
$z_{22} = $ Value Units
