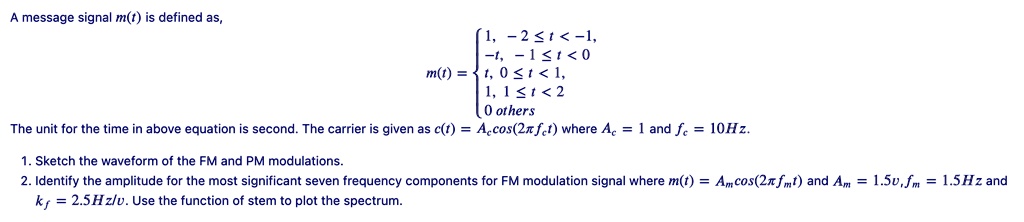

A message signal $m(t)$ is defined as,
$\begin{cases}
1, & -2 \le t < -1, \\
-t, & -1 \le t < 0 \\
t, & 0 \le t < 1, \\
1, & 1 \le t < 2 \\
0 & others
\end{cases}$
The unit for the time in above equation is second. The carrier is given as $c(t) = A_ccos(2\pi f_ct)$ where $A_c = 1$ and $f_c = 10Hz$.
1. Sketch the waveform of the FM and PM modulations.
2. Identify the amplitude for the most significant seven frequency components for FM modulation signal where $m(t) = A_mcos(2\pi f_mt)$ and $A_m = 1.5v, f_m = 1.5Hz$ and
$k_f = 2.5Hz/v$. Use the function of stem to plot the spectrum.
