Q1

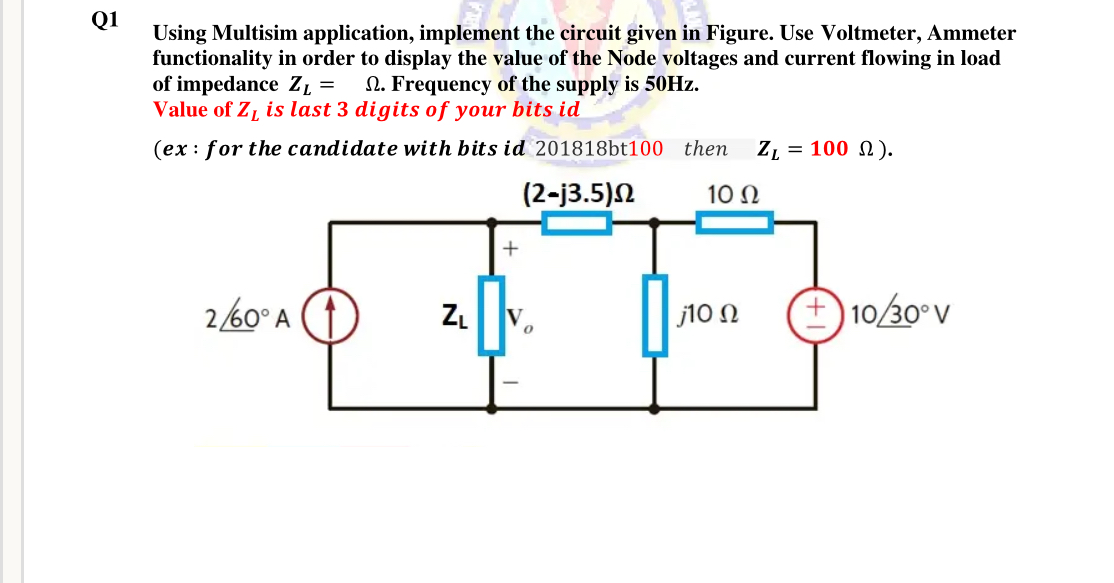

Using Multisim application, implement the circuit given in Figure. Use Voltmeter, Ammeter functionality in order to display the value of the Node voltages and current flowing in load of impedance \( \boldsymbol{Z}_{\boldsymbol{L}}=\Omega \). Frequency of the supply is \( \mathbf{5 0 H z} \).
Value of \( Z_{L} \) is last 3 digits of your bits id
(ex: for the candidate with bits id 201818bt100 then \( \boldsymbol{Z}_{\boldsymbol{L}}=\mathbf{1 0 0} \Omega \) ).
