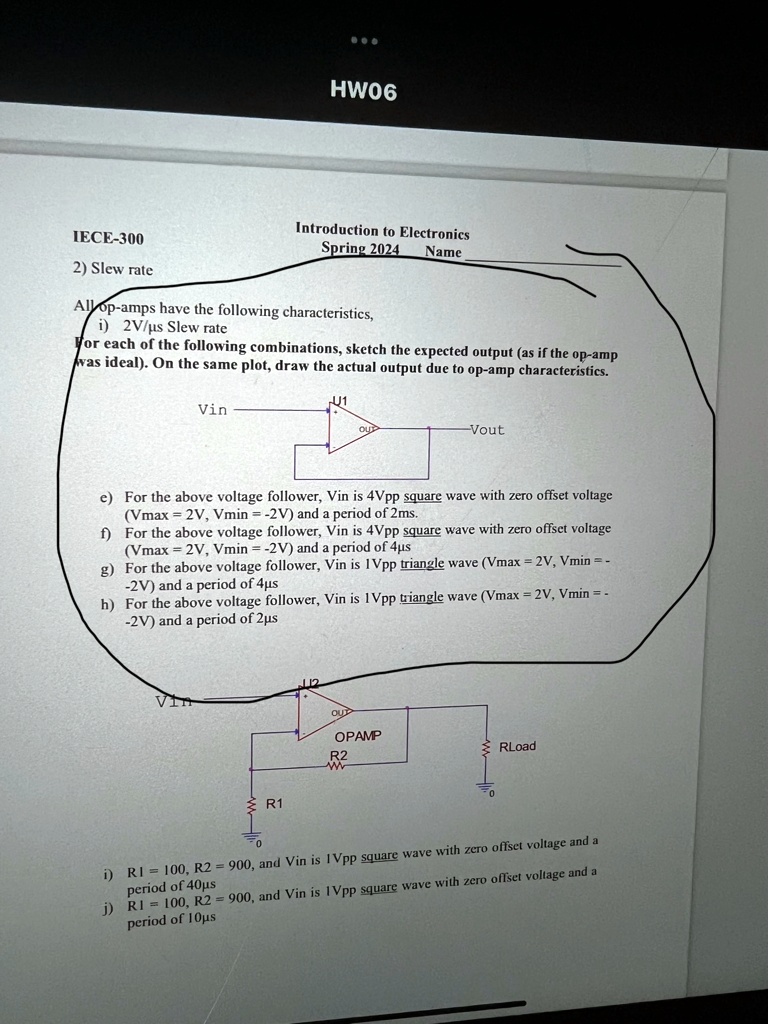

HW06
IECE-300
Introduction to Electronics
Slew rate
Spring 2024 Name
All op-amps have the following characteristics:
i) 2(V)/(mu ) s Slew rate
For each of the following combinations, sketch the expected output (as if the op-amp was ideal). On the same plot, draw the actual output due to op-amp characteristics.
Vin
Vout
e) For the above voltage follower, Vin is 4Vpp square wave with zero offset voltage (Vmax) = 2V, Vmin = -2V, and a period of 2ms.
f) For the above voltage follower, Vin is 4Vpp square wave with zero offset voltage (Vmax) = 2V, Vmin = -2V, and a period of 4mu s.
g) For the above voltage follower, Vin is 1Vpp triangle wave with Vmax = 2V, Vmin = -2V, and a period of 4mu s.
h) For the above voltage follower, Vin is 1Vpp triangle wave with Vmax = 2V, Vmin = -2V, and a period of 2mu s.
i) R1 = 100, R2 = 900, and Vin is 1Vpp square wave with a period of 40mu s.
j) R1 = 100, R2 = 900, and Vin is 1Vpp square wave with zero offset voltage and a period of 10mu s.
